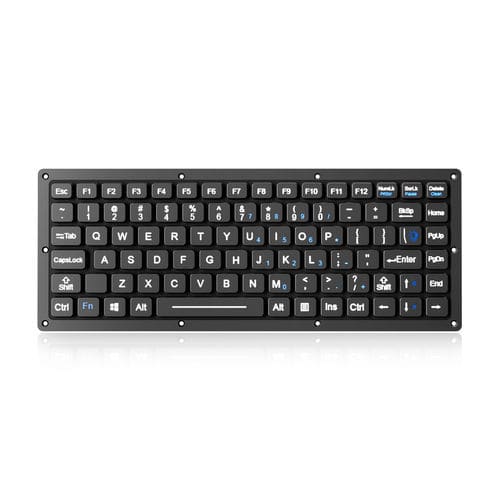

Panel-mount keyboard K-TEK-M280-FN-BL-FC-KC-ML-EP
carbon contactwith 2 mouse keys87-key

Panel-mount keyboard - K-TEK-M280-FN-BL-FC-KC-ML-EP - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 87-key
Panel-mount keyboard - K-TEK-M280-FN-BL-FC-KC-ML-EP - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 87-key
Panel-mount keyboard - K-TEK-M280-FN-BL-FC-KC-ML-EP - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 87-key - image - 2
Panel-mount keyboard - K-TEK-M280-FN-BL-FC-KC-ML-EP - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 87-key - image - 3
Panel-mount keyboard - K-TEK-M280-FN-BL-FC-KC-ML-EP - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 87-key - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
carbon contact
Number of keys
with 2 mouse keys, 87-key
Domain
for self-service information kiosk, industrial, outdoor, for public access kiosks and internet terminals, electronics, control panel, for mining applications, for the transportation industry, for control panels, for the aeronautical industry, for the automotive industry, for marine applications, marine, for construction, for the aerospace industry
Connection type
USB
Structure
QWERTY, silicone-key, AZERTY
Material
plastic
Protection level
waterproof, rugged, rugged, scratch-proof, weatherproof, rugged, rugged, MIL-STD 810F, IP67, EMC
Other characteristics
backlit

Description

Overview
  • Category: DWP scissor-switch keyboard
  • Model: K-TEK-M280-FN-BL-FC-KC-ML-EP
  • Key count: 87 keys (detailed) / 88 + 2 mouse buttons (summary)
  • Front panel protection: IP67
  • Interface: USB


Mechanical data (detailed)
  • Key technology: Carbon contact + FPC carbon-on-gold key switch
  • Key travel: 1.50 mm ±0.10 mm (detailed); alternative 1.20 mm ±0.10 mm in summary
  • Actuation force: 1.2 N ±0.2 N
  • Switch life: >5 million actuations


Electrical data
  • Supply voltage: DC +5V ±5%
  • Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
  • EMC: EN 55032:2015, EN 55035:2017
  • Interface/OS: USB; compatible with Windows, Linux, Unix, macOS, VxWorks, Android (µC/OS to be confirmed)


Environmental adaptability
  • Operating temperature: -40°C to +75°C
  • Storage temperature: -50°C to +85°C
  • Humidity test: 30–60°C at 95% RH, 24 h cycles, 10 cycles (240 h)
  • Atmospheric pressure: 57–106 kPa
  • Vibration: 0–2000 Hz, 1 mm displacement, 70 m/s²
  • Shock: peak 40 g, pulse 11 ms, multi-axis impacts
  • Temperature shock, fungus, salt spray, rain and dust tests as specified


Reliability & certifications
  • MTBF: >20,000 h; MTTR: <30 min
  • Key lifespan: >5 million actuations
  • Certifications: RoHS, CE, FCC; applicable MIL-STD-810H test categories


Applications
  • Vehicle, aerospace, naval/maritime, radar consoles, rugged laptops, UAV ground stations, portable and industrial consoles


Technical specifications
  • Model: K-TEK-M280-FN-BL-FC-KC-ML-EP
  • Category: DWP scissor-switch keyboard
  • Keys: 87 (detailed) / 88 + 2 mouse buttons (summary)
  • Key travel: 1.50 mm ±0.10 mm (detailed) / 1.20 mm ±0.10 mm (summary)
  • Actuation force: 1.2 N ±0.2 N
  • Switch life: >5 million operations
  • Interface: USB
  • Supply voltage: DC +5V ±5%
  • Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
  • Protection: IP67 (front panel)
  • Operating temp.: -40°C to +75°C; storage: -50°C to +85°C
  • EMC: EN 55032:2015, EN 55035:2017
  • Certifications: RoHS, CE, FCC; MIL-STD-810H categories applicable
  • MTBF: >20,000 h; MTTR: <30 min
