Panel-mount keyboard K-TEK-M315KP-FN-BL-FC-KC-ANA-151B+TP85+2K
carbon contactwith 2 mouse keys102-key

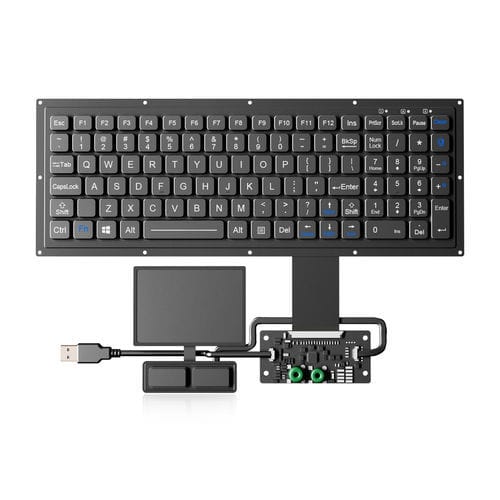

Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-ANA-151B+TP85+2K - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 102-key
Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-ANA-151B+TP85+2K - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 102-key
Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-ANA-151B+TP85+2K - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 102-key - image - 2
Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-ANA-151B+TP85+2K - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 102-key - image - 3
Panel-mount keyboard - K-TEK-M315KP-FN-BL-FC-KC-ANA-151B+TP85+2K - Key Technology Rugged System Limited - carbon contact / with 2 mouse keys / 102-key - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
carbon contact
Number of keys
with 2 mouse keys, 102-key
Pointing device
with touchpad
Domain
for public access kiosks and internet terminals, industrial, outdoor, control panel, for mining applications, for self-service information kiosk, for the automotive industry, marine, for construction, for the transportation industry, marine, for the aerospace industry, for aeronautical applications
Connection type
USB
Structure
ultra-slim
Material
plastic
Protection level
scratch-proof, vandal-proof, waterproof, rugged, for harsh environments, ultra-rugged, EMC, ESD, with numeric keypad, MIL-STD 810F, MIL-STD-461G, IP67
Other characteristics
compact, backlit, custom, long-travel, integrated

Description

Overview
  • Category: Ultra Thin Semi-Rugged Keyboard for aerospace and vehicular consoles
  • Key count: 102 keys + 2 mouse buttons
  • Key travel: 1.50mm ±0.10mm
  • Interface: USB
  • Key switch: Carbon contact with FPC carbon-on-gold technology
  • Protection: IP67 (front panel)


Mechanical Data
  • Keys: 102 keys + 2 mouse buttons
  • Key technology: Carbon contact + FPC carbon-on-gold key switch
  • Key travel: 1.50mm ±0.10mm
  • Actuation force: 1.2N ±0.2N
  • Switch life: >5 million operations


Electrical Data
  • Supply voltage: DC +5V ±5%
  • Current rating: ≤30mA (backlight off), ≤300mA (backlight on)
  • EMC/EMI/ESD: MIL-STD-461G tests included (CE101, CE102, CS101, CS106, CS112, CS114, CS115, CS116, RE101, RE102, RS101, RS103)


Environmental Adaptability
  • Operating temperature: -40℃ to +75℃
  • Storage temperature: -50℃ to +85℃
  • Humidity test: 30℃–60℃; 95% RH; 24h cycle ×10 cycles (240h)
  • Atmospheric pressure: 57 kPa – 106 kPa
  • Vibration: 0–2000 Hz, 1 mm displacement, 70 m/s² acceleration
  • Shock: peak 40g, 11 ms pulse, triaxial (18 impacts)
  • Temperature shock: -55℃ / +75℃ cycles as specified
  • Fungus, salt spray, rain, dust and transport drop tests per procedures


Reliability
  • Certifications: RoHS, CE, FCC
  • Standards: MIL-STD-461G and MIL-STD-810H compliance
  • Key lifespan: >5 million actuations
  • MTBF: >20,000 h; MTTR: <30 min


Application
  • Designed for vehicles, aerospace, naval and maritime consoles, radar and display consoles, rugged laptops, UAV ground stations and other harsh environments


Technical specifications
  • Model: K-TEK-M315KP-FN-BL-FC-KC-ANA-151B+TP85+2K
  • Category: Ultra Thin Semi-Rugged Keyboard
  • Key number: 102 keys + 2 mouse buttons
  • Key travel: 1.50mm ±0.10mm
  • Key switch technology: Carbon contact + FPC carbon-on-gold
  • Actuation force: 1.2N ±0.2N
  • Switch life: >5 million operations
  • Interface: USB
  • Supply voltage: DC +5V ±5%
  • Current rating: ≤30mA (backlight off), ≤300mA (backlight on)
  • Protection level: IP67 (front panel)
  • Operating temperature: -40℃ to +75℃; Storage: -50℃ to +85℃
  • Compliance: RoHS, CE, FCC, MIL-STD-461G, MIL-STD-810H
  • Typical applications: vehicle, aerospace, naval, maritime, radar, display consoles, rugged laptops, UAV ground stations
