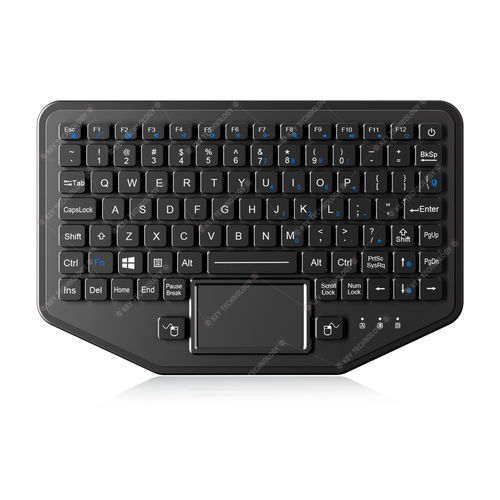

Panel-mount keyboard K-TEK-M275TP-FN-BL-FC-KC-FDT-WF

carbon contactwith 2 mouse keys92-key

1. Product Overview
This is a 92-key IP68 fully sealed rugged 2.4G wireless keyboard integrated with fully sealed wide-temperature waterproof touchpad for precise cursor control. It adopts premium P+R structure and carbon contact plus FPC carbon-on-gold key switches, featuring silent smooth input without key missing or stuck failure. Equipped with top-row F1-F12 function keys and combined numeric layout on letter keys to realize full keyboard functions. It supports adjustable white backlight and FN+Clean quick cleaning function for maintenance without disassembly. Built with sturdy ABS polycarbonate housing, it is ultra-flat desktop style and compatible with VESA mounting. The product complies with full MIL-STD-810H environmental standards and optional MIL-STD-461G EMC specifications, meets ten core military-grade performance requirements, and holds independent patent No. 202420937267.2, ideal for extreme harsh working environments.

2. Key Features
92 keys layout including 2 mouse buttons, with F1-F12 function keys and combined numeric keys
Highest grade IP68 full sealing waterproof and dustproof performance
Integrated fully sealed wide-temperature touchpad for fast accurate cursor positioning
Durable P+R construction (PC keycaps + rubber base), anti-microbial & chemical resistant surface coating
Stable carbon contact + FPC carbon-on-gold key switch technology
1.50mm±0.10mm key travel, comfortable tactile feedback, noise-free typing
Adjustable white backlight for dim light operation
FN+Clean shortcut cleaning function, avoid misoperation during cleaning
2.4G wireless transmission design, flexible wireless use
Robust ABS polycarbonate casing, ultra-flat desktop design, support VESA mounting
Fully certified to MIL-STD-810H military environmental standard, optional MIL-STD-461G EMC/EMI/EMS/ESD
Satisfy military ten major performance standards for harsh field use

3. Applications
Vehicle equipment, aerospace systems, naval & maritime facilities, defense industry, radar control consoles, industrial operation consoles, rugged portable laptops, UAV ground stations and other military & severe industrial scenarios.

4. Mechanical Data
Total Keys: 92 keys (including 2 mouse buttons)
Key Technology: Carbon contact + FPC carbon-on-gold key switch
Key Travel: 1.50 mm ± 0.10 mm
Switch Lifespan: More than 5 million operations
Actuation Force: 1.2 N ± 0.2 N
Outer Material: High-strength ABS polycarbonate
Installation: Ultra-flat desktop type, VESA mountable
Overall Dimension: 297.58mm × 192.06mm × 22.20mm

5. Electrical & Compliance Data
Supply Voltage: DC +5V ±5%
Working Current: ≤30mA (backlight off); ≤300mA (backlight on)
EMC Standard: EN 55032:2015, EN 55035:2017
Service Lifespan: Over 5 years
Connection Mode: 2.4G wireless version
OS Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android, U-cos (to be confirmed)
Certifications: RoHS compliant, CE, FCC certified
Patent Number: 202420937267.2

6. Environmental Adaptability & Reliability
Environmental Performance
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -50℃ ~ +85℃
Working Air Pressure: 57kPa ~ 106kPa
Humidity Resistance: 30℃~60℃, 95%RH, 10 cycles, total 240 hours
Vibration Resistance: 0~2000Hz, 1mm displacement, acceleration 70m/s²
Shock Resistance: 40g peak acceleration, 11ms pulse duration, 18 times triaxial impact
Temperature Shock: -55℃~75℃ cyclic test, total 12 hours
Fungus Resistance: Standard strains test, continuous 28 days
Salt Spray Resistance: 2-cycle test, total 96 hours
Rain Resistance: Wind speed ≥18m/s, continuous 3-hour blowing rain test
Dust Resistance: Segmented temperature-varying dust blowing test
Drop Resistance: 122cm drop height, 26 times omnidirectional drop test
Reliability Parameters
Protection Level: IP68
Key Actuation Life: Over 5 million times
MTBF: More than 20000 hours
MTTR: Less than 30 minutes
Military Standard: Meet full MIL-STD-810H; optional MIL-STD-461G electromagnetic compatibility standard

7. Technical Specifications
Product Type: IP68 Ultra-flat 2.4G Wireless Military Rugged Keyboard
Key Layout: 92 keys + 2 mouse buttons + F1-F12 function keys + combined numeric keys
Built-in Accessory: Fully sealed wide-temperature high-precision touchpad
Body Structure: Ultra-thin desktop design, high-strength ABS polycarbonate housing
Mounting Way: Desktop placement, VESA mounting supported
Backlight: Adjustable white backlight
Core Protection: IP68 full waterproof dustproof
Transmission Mode: 2.4G wireless
Main Compliance: MIL-STD-810H, CE, FCC, RoHS
Core Craft: P+R keys, carbon contact + FPC carbon-on-gold switches
