Panel-mount keyboard K-TEK-M315KP-FN-BL-FC-KC-DM-EP

carbon contact102-keyfor the transportation industry

1. Product Overview

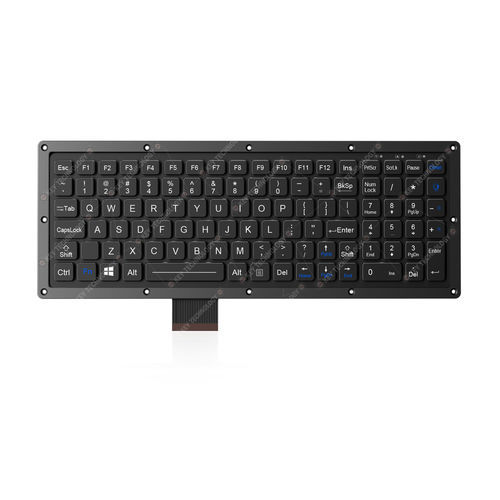

This is a 102-key IP67 fully sealed embedded ultra-thin rugged keyboard built with built-in ultra-thin dot matrix FPC. It features independent numeric keypad on the right side and top-row F1-F12 function keys for convenient operation. Adopting durable P+R structure and carbon contact plus FPC carbon-on-gold key switches, it ensures silent, stable and error-free input without missing or stuck keys. The anti-microbial wear-resistant surface resists various chemicals and liquids in harsh environments. It supports adjustable white backlight and FN+Clean one-key cleaning function without dismounting. Equipped with reinforced aluminum alloy back plate with mounting holes for rear panel installation. It fully complies with MIL-STD-810H environmental standards and optional MIL-STD-461G EMC standards, fulfilling ten core military performance criteria for reliable operation in extreme conditions.

2. Key Features
Full 102-key layout, equipped with independent numeric keypad and F1-F12 function keys
Front panel IP67 full waterproof and dustproof sealing performance
Premium P+R structure with anti-microbial & chemical resistant surface coating
Mature carbon contact + FPC carbon-on-gold key switch technology
1.50mm±0.10mm standard key travel, comfortable tactile feeling, noise-free typing
Adjustable white backlight suitable for dark working environments
FN+Clean shortcut cleaning function to avoid operational errors
Reinforced aluminum alloy back plate with reserved mounting holes for rear panel installation
Strictly meets MIL-STD-810H military environmental standards, optional MIL-STD-461G EMC certification
Complies with ten major military-grade performance requirements

3. Applications
Vehicle control systems, aerospace equipment, naval & maritime facilities, defense industry, radar systems, industrial control consoles, rugged portable laptops, UAV ground stations and other mission-critical harsh working scenarios.

4. Mechanical Data
Total Keys: 102 keys
Key Switch Technology: Carbon contact + FPC carbon-on-gold key switch
Key Travel: 1.50 mm ± 0.10 mm
Switch Lifespan: More than 5 million operations
Actuation Force: 1.2 N ± 0.2 N
Structural Accessory: Reinforced aluminum alloy back plate with mounting holes
Installation Type: Rear panel mount
Front Panel Dimension: 330.6 mm × 123.6 mm

5. Electrical & Compliance Data
Supply Voltage: DC +5V ±5%
Working Current: ≤30mA (backlight off); ≤300mA (backlight on)
EMC Standard: EN 55032:2015, EN 55035:2017
Overall Service Lifespan: Over 5 years
Interface: Dot matrix, USB / PS2 optional
OS Compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android, U-cos (to be confirmed)
Certifications: RoHS compliant, CE, FCC certified

6. Environmental Adaptability & Reliability
Environmental Performance
Operating Temperature: -40℃ ~ +75℃
Storage Temperature: -50℃ ~ +85℃
Atmospheric Pressure: 57kPa ~ 106kPa
Humidity Test: 30℃~60℃, 95%RH, 10 cycles, total 240 hours
Vibration Resistance: 0~2000Hz, 1mm displacement, 70m/s² acceleration
Shock Resistance: 40g peak acceleration, 11ms pulse duration, total 18 times triaxial impact
Temperature Shock: -55℃~75℃ cyclic test, total 12 hours
Fungus Resistance: Specified strains continuous test for 28 days
Salt Spray Resistance: 2 test cycles, total 96 hours
Rain Test: Wind speed ≥18m/s, continuous 3-hour blowing rain test
Dust Test: Segmented temperature-varying dust blowing test
Drop Resistance: 122cm drop height, 26 times omnidirectional drop test
Reliability Index
Protection Level: IP67 (front panel)
Key Service Life: More than 5 million actuations
MTBF: More than 20000 hours
MTTR: Less than 30 minutes
Military Standard: Conform to full MIL-STD-810H; optional MIL-STD-461G for EMC/EMI/EMS/ESD

7. Technical Specifications
Product Type: Ultra-thin Embedded IP67 Rugged Keyboard
Key Layout: 102 keys with independent numeric keypad and full function keys
Internal Circuit: Built-in ultra-thin dot matrix FPC
Rear Structure: Reinforced aluminum alloy back plate with mounting holes
Installation Method: Rear panel mount
Backlight: Adjustable white backlight
Protection Grade: IP67 front panel sealing
Connection Option: Dot matrix default, USB / PS2 selectable
Core Technology: P+R keycaps, carbon contact + FPC carbon-on-gold switches
Qualification Standard: MIL-STD-810H, CE, FCC, RoHS
