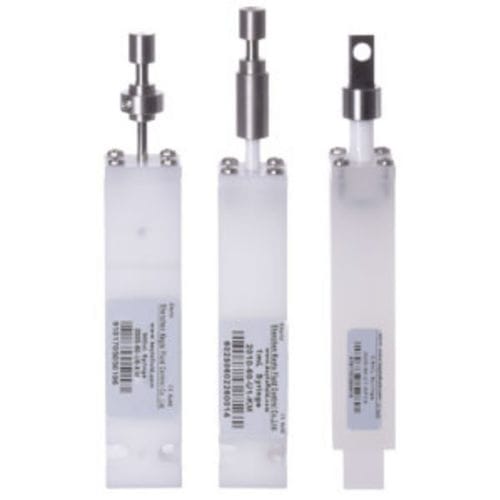

Dosing syringe 200 series

with pistonstainless steel

The 20XX series precision ceramics syringe is self-developed by Keyto and its main function is to achieve achieve aspiration and dispensing with precise dosing. The syringe has a very high repeatability precision(CV) and accuracy of aspiration and dispensing. It is a high performance, low cost, maintenance free precision syringe with service life of over 3 million cycles for the μL class and over 2 million cycles for the ml class without compromising accuracy and precision. Reasons to Buy Keyto Ceramics Syringes 01 Available in eight syringe volumes Available in eight syringe volumes from 50uL to 10mL. 02 Extremely high and stable dosing aspiration and dispense accuracy Extremely high and stable dosing aspiration and dispense accuracy over the life cycle of the pump. The following table shows the CV when tested with deionized water as the medium. 03 Full stroke Full stroke: 60mm. 04 Maintenance-free Advanced zirconia ceramic plunger machining technology, rigorous inspection procedures, and unique sealing solutions that ensure maintenance-free over the life cycle of the ceramics syringes. 05 Good chemical resistance and high wear resistance Good chemical resistance and high wear resistance of the materials of the components in contact with the reagents: (1)Syringe chamber material: POM(Nominal), Teflon (PTFE) and other polymer materials are optional on request. (2)Plunger material: zirconia ceramic, stainless steel metal are optional.
