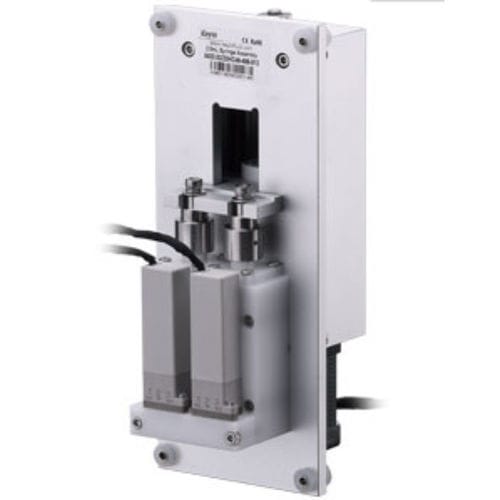

Gas-tight syringe 5646-35/63NC56-673-012

Dispense volume - 50ul,100ul,250ul,500ul,1ml,2.5ml,5ml,10ml,15mletc. Plunger material - Zirconia ceramic,SUS316L Carrying syringe - 1-8pcs Travel distance(mm) - 30-60 Lead(mm) - 6 - 2.5 Distance per stroke(mm/step) - 0.03 - 0.0125 Volume per stroke (ul/step) - 0.0005*V - 0.0002083*V Motor step angle - 1.8 ° Motor current(A) - 2A/2.3A Dispense precision - 0.02 Coefficient of variation(CV) - 2% dispense:<1.2%CV;10% dispense:<1%CV Life cycle (cycles) - ul level:3 million/ml level:2 million Connection port - 1/4-28 UNF;M6 Integrated valve series - 1013 solenoid valve Voltage(V) - 12V/24V±10% DC Withstand pressure（kPa） - -80kPa ~ +300kPa Orifice diameter(mm) - 1.5 Flow Coefficient(CV) - 0.03 Response time(ms) - <30 Lifetime - 2 million Dead volume - 0 Power(W) - 24V：2.8W，12V：3.2W Connection port - 1/4-28 UNF;M6 Main Features - 1,High repeatability，high precision,long life; 2,Double guide bearing structure,ensures the stability of the motion 3,Unique sealing scheme and advanced processing technology guarantee,maintenance free; Applicable occasions - 1.Suitable for high-precision occasions such as precise quantification, liquid suction and discharge.
