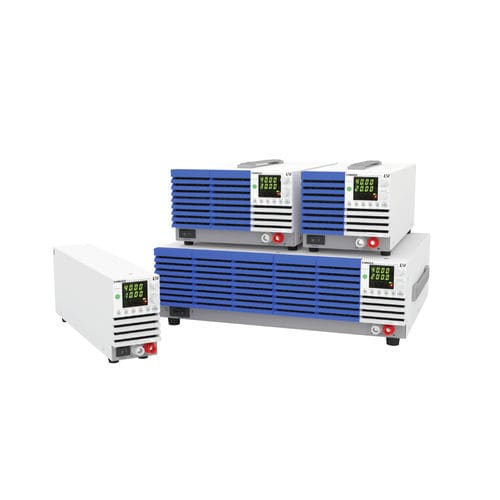

AC/DC power supply PWR-01 series

switchingwith USB outletcompact

The PWR-01 is a series of high performance, multifunctional, compact, wide-range DC power supplies. It consists of 16 models in total with 4 maximum voltage outputs (L, ML, MH, and H) and 4 maximum power outputs (400 W, 800 W, 1200W and 2000 W). With the PWR-01 series you can set sequences with an embedded CPU as well as analog control. The series is equipped with LAN (LXI), USB, and RS232C as standard interfaces that are essential for system integration. The PWR-01 also features front-facing output terminals, variable internal resistance, bleeder ON/OFF functions, a CC/CV priority switching function, synchronized operation, various protections, and programmable internal memory. The sequence function allows you to automatically execute programs that you have set in advance, one operation at a time. However, you cannot create sequences using only the panel. Sequence programs are created using commands from a PC.Once a sequence is executed via remote control, the program is saved onto the PWR-01’s internal memory and then can be executed directly from the front panel without a PC. The series has been equipped with LAN (LXI), USB, and RS232C as standard interfaces, essential for system integration. When using RS232C, please order the D-sub 9P-RJ45 transformation cable (RD-8P/9P) option, sold seperately. The PWR-01 has also been equipped with J1/J2 connectors for analog control. All models are equipped with front-facing output terminals (up to 10 A) optimized for bench-top use. Please connect to the output terminals with a safety plug. *This product’s specifications were recorded using the back-side output terminals.
