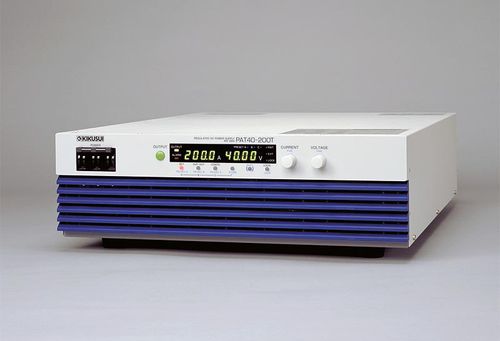

AC/DC power supply PAT-T series

AC/DC power supply
AC/DC power supply
AC/DC power supply
AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Other characteristics
tabletop, switching

Max.: 40,000 W

Min.: 4,000 W

Output voltage

Max.: 850 V

Min.: 0 V


The PAT-T Series is a CV/CC auto-shifting switching DC power supply featuring excellent efficiency and low noise due to a soft switching system design. The PAT-T series is equipped with state-of-the-art high-density packaging technology allowing for extremely high power capacity with a vastly reduce chassis size and weight. A built-in "power factor correction circuit" greatly reduces noise while supressing harmonic currents for an optimal electronic test environment. Power reception and distribution modules have been simplified resulting in lower power consumption and an overall decreased cost of ownership. Guaranteed continuous operation at ambient temperatures as high as 50°C make the PAT-T the perfect power supplies for extremely demanding environments even under full-load. The PAT-T is equipped with an intuitive, user-friendly display panel supporting standard RS232C digital interface as well as external analog control, monitor output and status output connectors allowing for control via computer or sequencer. USB, GPIB, or LAN (LXI) digital interfaces are also available as a factory option. The PAT-T power supply is an extremely versatile test instrument easily incorporated into any test system or used stand-alone. Features 4 kW type can operate even with single-phase 200 volt input. (However, current is limited to about 75% of rated value.) Standardly equipped with RS-232C interface. Supports USB/GPIB/LAN interface.(Factory option) Controllable from Excel VBA and LabView with measuring instrument driver. Driver can be downloaded free at our web site. Capacity can be expanded through parallel operation (up to five units of the same model).
