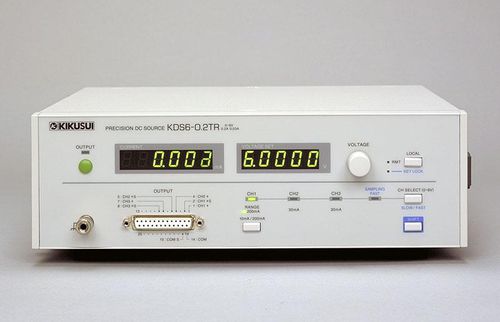

AC/DC power supply KDS6-0.2TR
tabletophigh-frequency

AC/DC power supply
AC/DC power supply
AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product

Characteristics

Type
AC/DC
Other characteristics
tabletop, high-frequency
Output voltage

Max.: 6 V

Min.: 0 V

Description

KDS6-0.2TR is designed for use on production and inspection lines for high-frequency components capable of low supply current and low voltage operation that have become dominantly popular in recent years, as well as for a variety of electronic devices such as ICs, LSIs, and sensors. This product is a low-noise, highly stable DC voltage power supply with 3-channel output. Features 3-channel voltage standard CH1: 0 to +6 V/200 mA CH2: 0 to +6 V/30 mA CH3: 0 to +6 V/30 mA (COM of 3-channel in common) Remote sensing function that compensates for voltage drops at the output terminal Best suited to operation tests for VCO and many other types of sensors Voltage setting resolution of 100 µV (allows a different voltage to be set independently for each channel) Current reading resolution of 0.1 µA* (in standard mode) * 1 µA resolution for the 200 mA Ripple noise level lower than 100 µVrms, thus supporting measurements of high-sensitivity devices High-resolution meter with an easy-to-view, 6-digit current display (no external ammeter needed) Supports RS-232C and GPIB as standard interfaces High-speed operation Current value refresh interval: 60 ms (in high-speed mode) Setting/readout speed: 5 ms (reference value for GPIB) Comes with a D-Sub 25 pin connector allowing for noise resistance
