Industrial gateway S173
IoTNB-IoTTCP

industrial gateway
industrial gateway
Add to favorites
Compare this product


Characteristics

Type
industrial, IoT, NB-IoT
Network
3G, GSM, GPRS, 4G, IP, serial, RS-485, cellular, TCP, Modbus RTU
Other characteristics
PLC, slave

Description

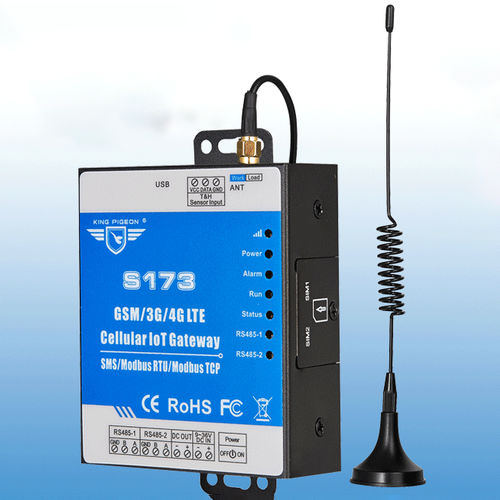

Model:S173 Name: GSM 3G 4G LTE Cellular IoT Gateway The Cellular IoT Gateway is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides 1 ambient sensor input for monitoring onsite temperature and humidity, with dual sim card slot and 2 RS485 serial port, supports dual sim card, 128 extend I/O tags via Modbus RTU protocol. It can monitoring and operates the RS485 ports and extend I/O tags by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically. The Cellular IoT Modbus RTU inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications, it can be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications according to the TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful if you need remote control onsite devices with low cost solution. The Cellular IoT Gateway is designed for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a remote RS485 data transmission, remote extend I/O tags control, remote smart PLC, meters monitoring. The Cellular IoT Gateway supports 2 RS485 transparent data transmission and performs as Modbus Slave over GPRS/3G/4G/NB-IoT network and RS485 serial port.
