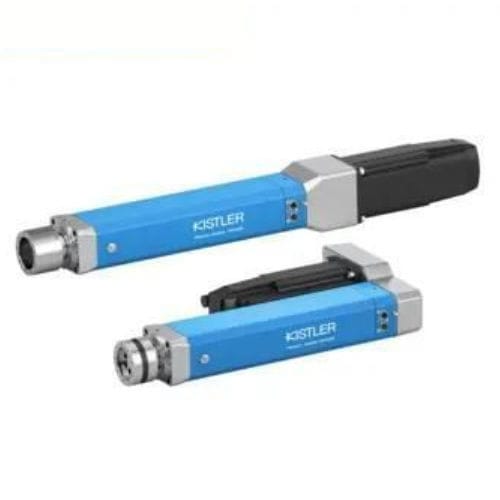

Joining module with integrated force sensor 2164A series

servo-driven

Overview
The NC joining module NCFx Pro Type 2164A features a compact design that reduces centre distances and installation space, facilitating integration into existing machine concepts. The force sensor is mounted directly on the ram for direct force measurement and is available as a ram-mounted strain gauge or piezoelectric sensor. Digital communication between the servo amplifier and the maXYmos NC process monitoring system (Type 5847C) is provided via EtherCAT. Plug-and-play integration with maXYmos NC enables automatic identification of the joining module and automatic transfer of sensor and calibration data to parameterize the servo amplifier. Measured values are transmitted interference-free via telemetry. The Ethernet interface supports transfer of quality data via multiple protocols, visualization via VNC and data backups.

Main features / advantages

• Ram-mounted strain gauge or piezoelectric force sensor with telemetry for high measurement accuracy
• Overload capacity: +20% of nominal joining force in compression
• Suitable for compression and tension applications
• High movement speed for short cycle times
• Piezoelectric variants with wide measuring range and seven predefined force ranges

Applications

• Riveting
• Clinching
• Pressing in bearings, pins and electronic components
• Flanging
• Rolling
• Bonding
• Crimping
• Sintering
• Creating clips and snap connections
• Caulking applications
• Testing processes such as spring testing

Interfaces and integration

• Digital communication via EtherCAT between servo amplifier and maXYmos NC (Type 5847C)
• Plug-and-play identification with automatic transfer of sensor and calibration values
• Telemetry for interference-free, precise measured-value transmission
• Ethernet interface for quality-data transfer via various protocols, VNC visualization and data backup

Technical specifications

• Series: NCFx Pro
• Type / model: 2164A
• Compact electromechanical joining module reducing centre distance and installation space
• Sensor position: ram-mounted for direct force measurement
• Sensor technologies: strain gauge or piezoelectric (ram-mounted)
• Example force ranges: 1.5 kN, 2 kN, 5 kN, 10 kN, 20 kN, 30 kN, 60 kN, 100 kN
• Example stroke lengths: 100 mm, 200 mm, 400 mm
• Overload capacity: +20% of nominal joining force (compression)
• Suitable for compression and tension applications
• High movement speed for short cycle times
• Telemetry for high-precision measured-value transmission
• Digital EtherCAT communication and automatic servo amplifier parameterization via maXYmos NC integration
• Ethernet interface for protocol-based quality-data transfer, VNC visualization and backups
• Available variants: holding brake option and angled or straight servo-press configurations
