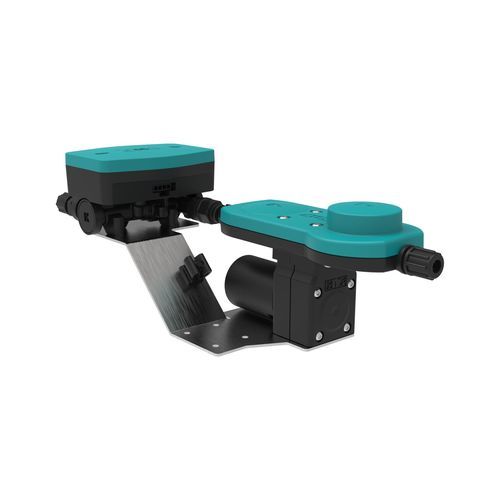

Diaphragm pump FMS-FC 1.70for gasbrushless DCself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- for gas
- Operation
- brushless DC
- Priming
- self-priming
- Mobility
- mobile
- Domain
- industrial, for the chemical industry, for the food and beverage industry, laboratory, for medical applications, for the semiconductor industry
- Applications
- metering, dosing
- Material
- PTFE
- Fluid specification
- for aggressive media
- Protection level
- maintenance-free
- Other characteristics
- compact, adjustable, continuous
- Flow
Max.: 0.036 m³/h
(1.27133 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
Max.: 4 bar
(58.015 psi)Min.: 0 bar
(0 psi)- Head
Max.: 3 m
(9'10" )Min.: 0 m
(0'00" )
Description
Product overview
KNF diaphragm liquid pumps for metering applications deliver precise, continuous dosing of neutral and aggressive liquids without contaminating the fluid. They are compact, maintenance-free, self-priming, capable of dry-running and available with a variety of motor and hydraulic connection options.
Benefits
Special Features
Applications
Available downloads (examples)
Technical specifications
KNF diaphragm liquid pumps for metering applications deliver precise, continuous dosing of neutral and aggressive liquids without contaminating the fluid. They are compact, maintenance-free, self-priming, capable of dry-running and available with a variety of motor and hydraulic connection options.
Benefits
- Excellent reliability
- Contamination-free transfer
- Maintenance-free operation
- High resistance to aggressive media
- Self-priming
- Can run dry
- Low pulsation
- Adjustable performance
Special Features
- Low pulsation for stable dosing
Applications
- Analytical instruments
- Chemical industry
- Cleaning and disinfection systems
- Food & beverage production
- Fuel cells
- Inkjet printing
- Laboratory equipment
- Medical devices
- Semiconductor processes
Available downloads (examples)
- Datasheet (EN)
- Installation / Operating Manual (EN)
- 3D CAD data (ZIP)
- Object Description (Technical document)
- Intelligent Pump UART Interface Description (Technical document)
- Quick-Start Guide (Technical document)
Technical specifications
- Flow Rate (max.): 0.6 l/min
- Pressure (max.): 4 bar (rel.)
- Suction Height (max.): 3 mH₂O
- Valve Material Options: FFKM
- Diaphragm Material Options: PTFE coated
- Pump Head Material Options: PPS
- Motor Type Options: Brushless DC
