Diaphragm pump N 630.1.2 series
for chemicalselectricself-priming

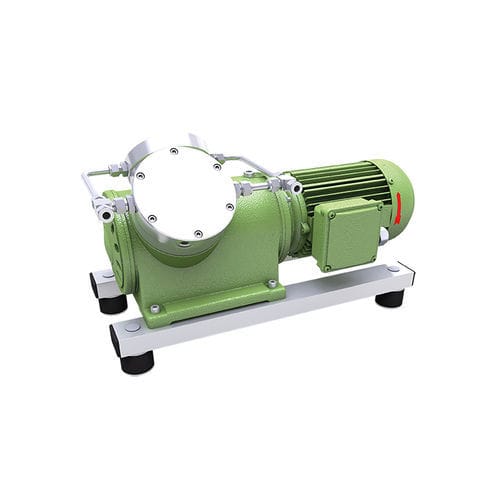

Diaphragm pump - N 630.1.2 series - KNF - for chemicals / electric / self-priming
Diaphragm pump - N 630.1.2 series - KNF - for chemicals / electric / self-priming
Add to favorites
Compare this product

Characteristics

Technology
diaphragm
Fluid
for chemicals
Operation
electric
Priming
self-priming
Mobility
stationary
Domain
industrial, chemical
Applications
transfer, control
Other characteristics
oil-free
Flow

68 l/min
(17.9637 us gal/min)

Pressure

7 bar
(101.526 psi)

Power

460 W, 510 W, 530 W, 540 W
(0.63 hp, 0.69 hp, 0.72 hp, 0.73 hp)

Length

569 mm
(22 in)

Width

315 mm
(12.4 in)

Height

296 mm
(11.65 in)

Weight

45 kg, 47 kg
(99.21 lb, 103.62 lb)

Description

KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation. Benefits Excellent reliability Contamination free transfer Low sound level Special Features High IP class (>44) Diaphragm pump Low leakage Safety double diaphragm
