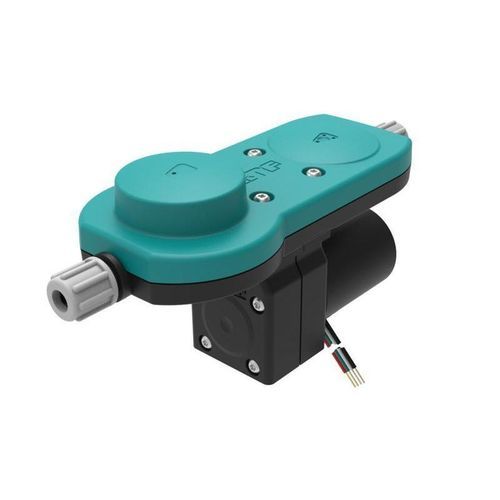

Diaphragm pump FP 1.70waterfor chemicalsfor food products
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water, for chemicals, for food products
- Operation
- with electric motor
- Priming
- self-priming
- Domain
- for the chemical industry, for the food industry, for pharmaceutical applications, for laboratory
- Material
- PTFE, EPDM
- Fluid specification
- for aggressive media, for corrosive fluids
- Protection level
- maintenance-free, corrosion-resistant
- Other characteristics
- low-noise, dry, low-vibration
- Flow
Max.: 0.048 m³/h
(1.6951 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
Max.: 6 bar
(87.023 psi)Min.: 0 bar
(0 psi)- Head
Max.: 3 m
(9'10" )Min.: 0 m
(0'00" )
Description
Product Overview
KNF diaphragm liquid pump FP 1.70 combines a compact design with chemically resistant materials to transfer, dose and measure neutral and aggressive liquids without contamination. The pump is self-priming, capable of dry-running, maintenance-free and offered with DC or brushless DC motor options and multiple hydraulic connections.
Key Specifications
Benefits
Special Features
Applications
Downloads (available)
Technical Specifications
KNF diaphragm liquid pump FP 1.70 combines a compact design with chemically resistant materials to transfer, dose and measure neutral and aggressive liquids without contamination. The pump is self-priming, capable of dry-running, maintenance-free and offered with DC or brushless DC motor options and multiple hydraulic connections.
Key Specifications
- Flow Rate (max.): 0.8 l/min
- Pressure (max.): 6 bar (rel.)
- Suction Height (max.): 3 mH₂O
Benefits
- Reliable operation for continuous and intermittent use
- Low noise and reduced vibration
- Contamination-free fluid transfer
- High resistance to aggressive media
- Self-priming capability
- FDA-approved materials available
- Maintenance-free design
- Can run dry without damage
- Low pulsation for stable dosing
- NSF certification available
Special Features
- Low pulsation
- NSF certified options
Applications
- Analytical instruments
- Cleaning and disinfection systems
- Inkjet printing
- Medical devices and equipment
- Food & beverage processing
- Fuel cell systems
- Agricultural dosing
- Automotive applications
- Chemical processing
- Climate technology
- Laboratory equipment
- Security and defense systems
Downloads (available)
- Datasheet FP 1.70 — PDF (3 MB)
- Operating Manual FP 1.70 — PDF (722 KB)
- 3D CAD Model FP 1.70 — ZIP (216 MB)
Technical Specifications
- Flow Rate (max.): 0.8 l/min
- Pressure (max.): 6 bar (rel.)
- Suction Height (max.): 3 mH₂O
- Valve Material Options: EPDM, FFKM
- Diaphragm Material Options: EPDM, PTFE
- Pump Head Material Options: PPS
- Motor Type Options: DC, Brushless DC
