Diaphragm pump N 1200 series
for chemicalselectricself-priming

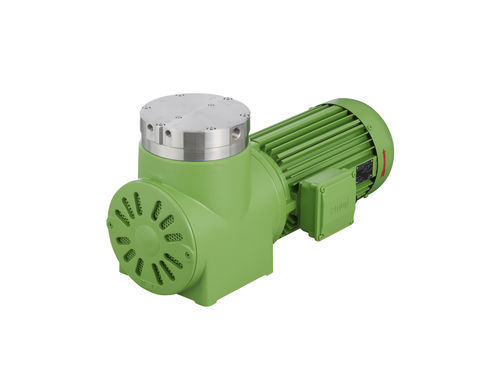

Diaphragm pump - N 1200 series - KNF - for chemicals / electric / self-priming

Diaphragm pump - N 1200 series - KNF - for chemicals / electric / self-priming

Add to favorites

Compare this product

Go to the KNF website for more information

Characteristics

Technology

diaphragm

Fluid

for chemicals

Operation

electric

Priming

self-priming

Mobility

stationary

Domain

industrial, chemical

Applications

transfer, control

Voltage

400 V, 380 V

Other characteristics

double, oil-free

Flow

130 l/min
(34.34237 us gal/min)

Pressure

6 bar
(87.023 psi)

Power

900 W, 1,100 W
(1.22 hp, 1.5 hp)

Fluid temperature

Max.: 40 °C
(104 °F)

Min.: 5 °C
(41 °F)

Length

617 mm
(24 in)

Width

277 mm
(10.91 in)

Height

303 mm, 331 mm
(11.93 in, 13.03 in)

Weight

57 kg, 60 kg
(125.66 lb, 132.28 lb)

Description

KNF diaphragm gas pumps transfer or compress gases and vapors and generate vacuum without contaminating the media. They are available with options for application requirements related to size, motor, control, voltage, chemical resistance, safety, vibration, noise and temperature resistance. All pump types offer oil-free operation. Benefits Excellent reliability Contamination free transfer Special Features High IP class (>44) Diaphragm pump Safety double diaphragm Low leakage

Catalogs

No catalogs are available for this product.
