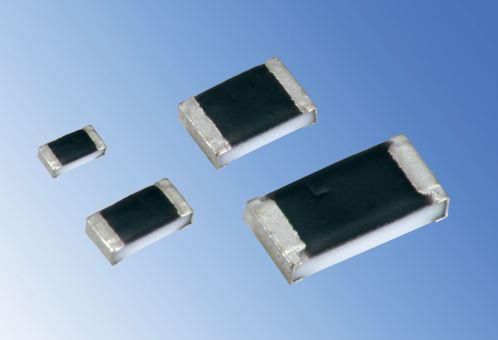

Thick-film resistor HSG73P series

high-powervoltagepulse

KOA has now added Sn plating type flat chip resistors HSG73P series with max. operating temperature up to 175℃. HSG73P series applies Sn plating, which enables mounting by SAC* solder. * SAC: Sn-Ag-Cu The product offers four-size lineup from 0402 inch to 1206 inch, with high power rating and excellent pulse resistant characteristics, HSG73P series is suitable for the applications used under high temperature environment as below. Application examples Automotives：Power Control Unit, sensors around the engines, Mechatronical integration of motor drive unit, etc. Industrial equipment: Devices operated under high temperature(power supplies, measuring equipment), peripherals of power devices, excavators etc. Features •High heat resistance that can be used even at high temperatures of 155℃ or higher. The maximum operating temperature of Sn plating products compatible with solder mounting is 175℃, and Au plating products compatible with conductive glue mounting is 200℃. •Excellent heat resistance and weather resistance are ensured by the use of metal glaze thick film. •High stability and high reliability with the triple-layer structure of electrode. •Superior to RK73 series chip resistors pulse withstanding voltage and high power. •Applicable to various kinds of automatic mounters for taping, etc. •Products meet EU-RoHS requirements. EU-RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass. •AEC-Q200 Tested.
