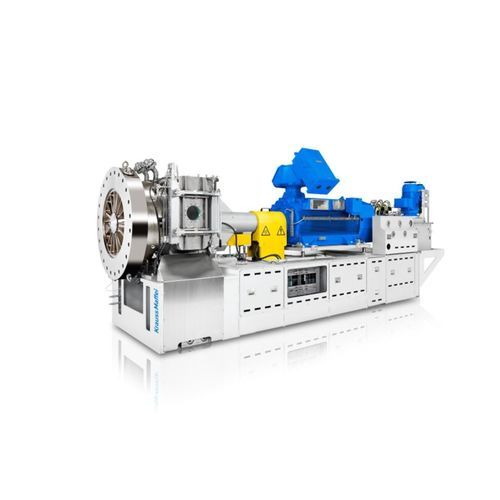

Pelleting plant UWG

Product description
Compact and high-efficiency UWG underwater pelletizers are primarily used in LDPE homopolymer and copolymer plants. Combined with KE single-screw extruders, they provide reliable and consistent pellet production.

Technical features

• Low-wear operation with a cutting gap between the die plate and the knife
• Optimized waterbox design to improve pellet quality
• Large doors on both sides of the cutting chamber for easy and fast flushing of the die plate and reduced changeover times
• Unique pelletizing concept with optimized die plates for excellent pellet quality
• Compatible with discharge extruders and degassing extruders

Performance data

• Screw diameter: 250 mm to 800 mm
• Throughput: 10–74 t/h
• Cutting gap and two-stage water chamber

Advantages

• Reliable, high-quality pellet production in LDPE homopolymer and copolymer plants
• High pellet quality thanks to optimized waterbox design and optimized die plates
• Low wear susceptibility and maintenance-friendly design (accessible doors)
• Flexible integration into extruder systems (e.g. connection to discharge or degassing extruders)

Technical specifications

• Application: LDPE homopolymer and copolymer plants
• Combinable with: KE single-screw extruders
• Screw diameter: 250–800 mm
• Throughput: 10–74 t/h
• Pelletizing: Underwater pelletizing with cutting gap and two-stage water chamber
• Maintenance/operation: Large doors on both sides of the cutting chamber for easy flushing and short changeover times
