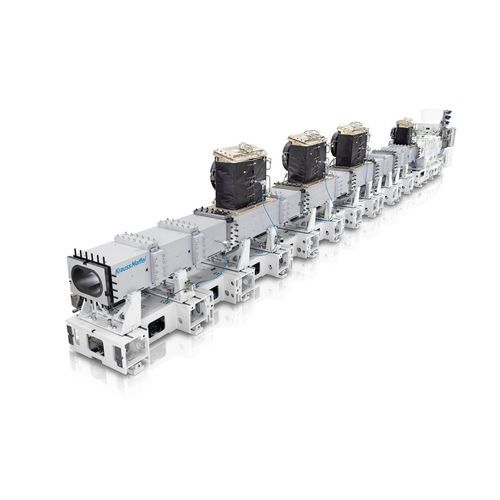

Wear-resistant extrusion twin-screw ZE

for plasticfor industrial applications

Product information
Our ZE PC series provides a solution for direct discharge of powder and melt from polymerization. With high-performance devolatilization, these extruders remove volatile components efficiently to maximize polymer purity and ensure consistent product quality.

Performance data

• Sizes: 260, 300, 330, 365 and 400 mm
• Diameter ratio: DA/DI of 1.65
• Throughput: from 25 t/h up to 130 t/h

Key features

• High modularity with 3D housing and base frame modules
• Components from established suppliers and good accessibility
• Modular screw design
• Target products: discharge extruder for PP, HDPE and MDPE
• High wear protection and low energy consumption

Technical specifications

• Series: ZE PC series
• Type: Co-rotating twin-screw extruder for petrochemical applications
• Main functions: Direct discharge of powder and melt from polymerization; high-performance devolatilization to remove volatile components and maximize polymer purity
• Available screw diameters: 260 mm, 300 mm, 330 mm, 365 mm, 400 mm
• Diameter ratio (DA/DI): 1.65
• Throughput range: 25 t/h – 130 t/h
• Materials / target products: PP, HDPE, MDPE (discharge extruder applications)
• Design: High modularity (3D housing and base frame modules), modular screw design
• Operational benefits: High wear protection, low energy consumption, process reliability
