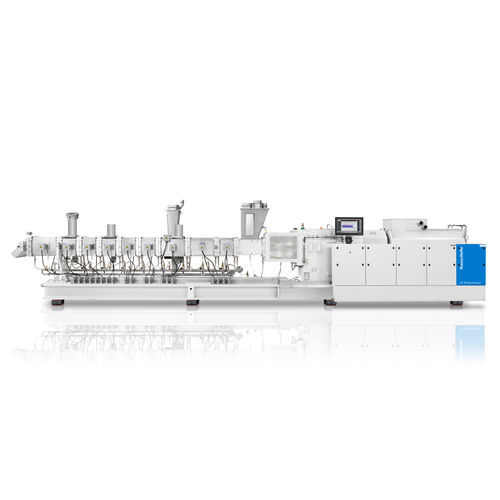

Twin screw extruder ZE BluePowerrecyclingfor PEThigh-throughput
Add to favorites
Compare this product
Characteristics
- Number of screws
- twin screw
- Applications
- recycling
- Treated material
- for PET
- Other characteristics
- high-throughput, side feed
- Screw diameter
Max.: 166 mm
(6.5 in)Min.: 42 mm
(1.7 in)- Maximum speed
500 rpm, 600 rpm, 750 rpm, 900 rpm, 1,200 rpm
(3,142 rad.min-1, 3,770 rad.min-1, 4,712 rad.min-1, 5,655 rad.min-1, 7,540 rad.min-1)- Torque
Max.: 38,500 Nm
(28,396 ft.lb)Min.: 1,300 Nm
(959 ft.lb)- Power
Max.: 4,032 kW
(5,481.99 hp)Min.: 163 kW
(221.62 hp)
Description
Overview
Co-rotating twin-screw extruder designed for compounding and polymer processing. The ZE BluePower series from KraussMaffei Group features a modular mechanical concept aimed at high throughput, energy-efficient operation and flexible process configurations.
Key specifications
Design and wear protection
Applications
Available options and services
Contact
Co-rotating twin-screw extruder designed for compounding and polymer processing. The ZE BluePower series from KraussMaffei Group features a modular mechanical concept aimed at high throughput, energy-efficient operation and flexible process configurations.
Key specifications
- Type: Co-rotating twin-screw extruder — ZE BluePower
- Da/Di ratio: 1.65
- Modular barrel lengths: 4 D and 6 D
- Side feeding device for lateral material intake
- Process control: Process control C7
Design and wear protection
- Elliptical stepped bushings for enhanced wear resistance
- Optimized tempering/cooling system
- Accessible machine layout to facilitate maintenance
Applications
- Compounding, polymer blending, masterbatch production and reactive extrusion
Available options and services
- Control and automation packages (Process control C7)
- Custom screw profiles and modular configuration
- Spare parts and maintenance support from KraussMaffei Group
Contact
- Request technical data sheets, performance curves and availability from your KraussMaffei Group representative
