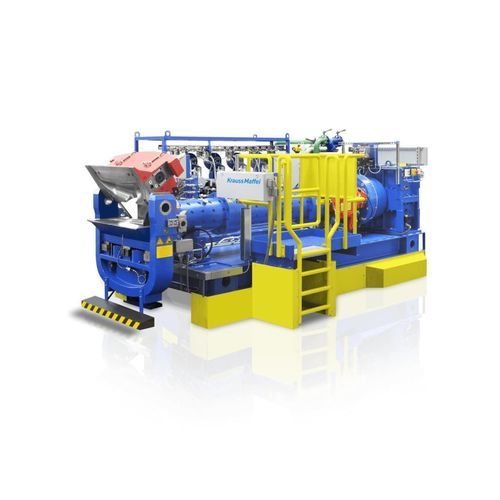

2-roller calendering machine RH

for rubber

Product information
KraussMaffei Extrusion's Roller Head extrusion line (RH) combines a two-roll calender with an extruder and a wide-slit die head to produce precisely shaped rubber sheets for subsequent processing (inner liners, plies, edge covers, squeegee strips). The system enables exact thickness control and uniform compound distribution across the entire sheet width.

Performance data

• For 60 mm – 250 mm extruder
• Product width: 0.6 m – 3.8 m
• Product thickness: 0.3 mm – 25 mm

Key benefits

• Movable extruder for fast maintenance and conversion work
• Hydraulic opening/closing of the wide-slit die head for quick cleaning
• Very tight thickness tolerances and consistent compound homogeneity across the sheet
• Reduced downtime thanks to simple and quick roll replacement
• Easy operation with low-maintenance design and integrated safety features

Applications

• Tires:
  Material: Natural and synthetic rubber, fillers (carbon black, silica, carbon, chalk), steel and textile cord
  Technology: Multiplex extrusion systems, roller head systems, cap strip systems
  Customer benefits: KraussMaffei tyre systems enable continuous, economical production of high-performance tyre components with consistent dimensional accuracy.

Technical specifications

• Extruder diameter compatibility: 60 mm – 250 mm
• Product width range: 0.6 m – 3.8 m
• Product thickness range: 0.3 mm – 25 mm
• Two-roll calender working in conjunction with extruder and wide-slit die head
• Bend-optimized rolls and hydraulic gap adjustment for accurate thickness control
• Hydraulic opening/closing of the wide-slit die head for fast cleaning
• Movable extruder for maintenance and conversion
• Rapid roll replacement to minimize downtime
• Designed for production of inner liners, plies, edge covers, squeegee strips and similar rubber sheets
