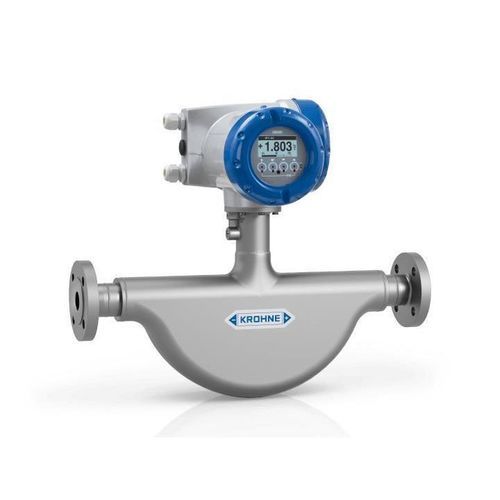

Coriolis flow meter OPTIMASS 5400

massvolumefor gas

Short description
The OPTIMASS 5400 is a Coriolis mass flowmeter for standard process applications with gases and liquids. The twin semi-bent tube sensor provides direct mass flow, density and temperature measurement and delivers derived values such as volume flow, concentration and velocity, together with extensive device and process diagnostics.

Key features

• Compact, lightweight design with an economical price/performance balance
• Operates with gases and liquids up to +180 °C and process pressures up to 100 barg; typical case burst pressure up to 200 barg
• Entrained Gas Management (EGM™) for stable measurement across a wide range of gas fractions and two-phase indication (GVF)
• Available connections: flanges DN10…100 / ½…4"; multiple hygienic clamp and ferrule options
• Extensive communications: 3 × 4…20 mA, HART®, Modbus, FOUNDATION™ Fieldbus, Profibus-PA/DP, PROFINET (Ethernet-APL), PROFINET, EtherNet/IP™, Bluetooth®

Overview
The OPTIMASS 5400 delivers cost-effective mass flow measurement for process and utility applications. Its twin semi-bent tube sensor measures mass flow directly and supports high diagnostic coverage and derived process values for control and quality monitoring.

Design & sustainability
Lightweight eco-design reduces handling effort, material use, overall weight and installation height compared with previous generations. This supports resource- and energy-efficient production and simplifies transport and commissioning.

Performance & safety
Wide turndown ratio and ability to handle elevated temperatures and pressures. The outer casing provides an additional safety barrier with typical burst-case resistance up to 200 barg, enhancing occupational and plant safety.

Applications
Suitable for chemical and petrochemical processes, mobile installations on trucks, rail tankers and portable rigs (non-custody transfer), marine fuel consumption measurement, food, beverage and pharmaceutical processes (EHEDG / 3A certified variants available), dosing, batching and more.

Entrained Gas Management & diagnostics
When combined with the MFC 400 signal converter, the meter supports EGM™ for stable measurement across gas fractions up to 100% and provides two-phase flow indication (gas volume fraction, GVF). Built-in OPTICHECK diagnostics enable continuous monitoring of device health and application status. Bluetooth® connectivity allows commissioning, monitoring and on-site verification using a mobile device and dedicated apps; verification reports can be generated on-site.

Electronics & communications
Modular electronics with a comprehensive range of output options, including Ethernet-based field communications such as PROFINET over Ethernet-APL and EtherNet/IP™, as well as classic bus systems, analogue and discrete outputs. Sensor and electronics are designed for easy replacement and available in compact or remote (field-mounted) variants.

Technical specifications

• Product type: Flowmeter
• Product family: OPTIMASS
• Positioning: For all standard process applications
• Variants: OPTIMASS 5400 C – compact version; OPTIMASS 5400 F – field-mounted (remote) version
• Measurement principle: Coriolis
• Measured media: Liquids, Gases
• Process pressure: sensor max. 100 barg; case burst pressure typically up to 200 barg
• Process temperature: -50 °C … +180 °C
• Measuring tube material: Austenitic stainless steel (1.4404 / 316L)
• Flange connections: EN (1092-1) DN10…100; ASME (B16.5) ½…4"; JIS (B2220) 10…100A
• Hygienic connections: Clamp (DIN 32676) DN10, DN25, DN40, DN50, DN80, DN100; Clamp (ISO 2852) 25, 40, 51, 76.1, 101.6; Tri-Clamp ½"…4"; Threaded ferrule (DIN 11851 / DIN 11864-1); Flange with groove (DIN 11864-2)
• Installation conditions: Inlet run 0D; Outlet run 0D (no special inlet/outlet runs required)
• Approvals / standards: ATEX, IECEx, NEPSI, JPNEx; Hygienic: FDA, 3A, EHEDG, EC 1935/2004; Marine: KR, RINA; Other: NACE, CRN / ASME B31.3, PED
• Analogue outputs: 4…20 mA
• Discrete outputs: Limit switches, Pulse, Frequency, Status
• Digital / bus: FOUNDATION™ Fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, EtherNet/IP™, PROFINET, Bluetooth®, PROFINET (Ethernet-APL)
• Certificates for hygienic & sterile processes available; self-draining when installed vertically and designed to withstand CIP and SIP processes
