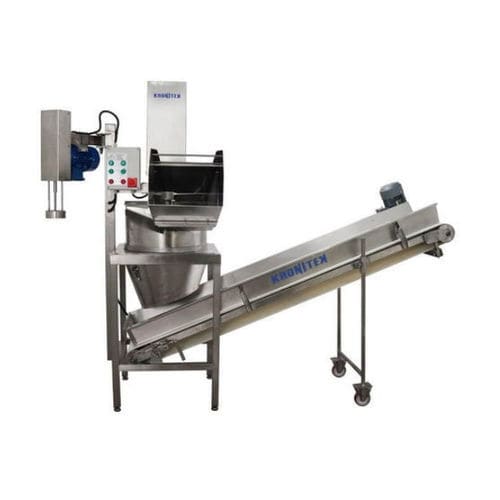

Vegetable food cutting machine S55

for applespotatocarrot

Overview
Compact industrial vegetable processing machine for high-volume production. Designed for slicing, grating, julienne stick cutting, shredding and optional mashing/kimchi preparation. Output depends on disc configuration: 2,000–4,000 kg/h.

Discs

• Slicing Disc 0–5 mm (standard, fixed) — 4- or 9-blade options for slicing cabbage, onions, potatoes and other vegetables; some setups limit cut height to 0–3 mm for specific formats.
• Julienne Stick Cutting Disc 3x3 mm — produces 3×3 mm sticks for carrots, potatoes, cabbage.
• Grating Discs 3, 4, 5 or 6 mm — for high-volume grating of carrots, cabbage, potatoes, beets (certain grating configurations rated up to 4,000 kg/h).

General features

• Stainless-steel cutting knives: durable, retain sharpness to reduce sharpening frequency.
• Cabbage core drill (optional): crushes/cuts the core of whole cabbage heads; can be mounted on the machine or on the wall.
• Transporter/conveyors: feed uncut vegetables to the machine and move processed product to barrels, tanks or mixers.
• High productivity: handles cabbage heads up to Ø30 cm and up to 8 kg; up to 4,000 kg/h depending on product and disc.
• Easy maintenance: removable discs; washable with low-pressure water.
• Salting vat / salt & spice dispenser option: movable dosing frame to add salt/spices during processing.

Accessories

• Spice and salt dispenser (movable salting vat) for direct dosing during processing.
• Cabbage core drill attachment.
• Transporters / conveyors for feeding and evacuation to containers or mixers.

Applications

• Main: cabbage processing (sauerkraut, coleslaw), shredding and bulk cutting operations.
• Also suitable for carrots, potatoes, beets, onions, lettuce, cucumbers, apples and, in some configurations, cheese.

Technical specifications

• Model: S55
• Productivity: 2,000–4,000 kg/h (depending on product and disc)
• Grating capacity (some modes): up to 4,000 kg/h
• Disc diameter: 50 cm
• Cutting thickness: 0–5 mm (standard slicing disc, fixed)
• Stainless-steel cutting knives: Yes
• Sharpening interval (per disc): > 350 t (as stated)
• Electric power: 2.2 kW
• Electric connection: 120 V / 220 V / 400 V, 50–60 Hz (motor variants available)
• Dimensions: 2250 × 955 × 1800 mm
• Weight (approx. shipping): 180 kg
• Maximum cabbage head: up to Ø30 cm, up to 8 kg
• Options: cabbage core drill, salt/spice dispenser, transporters/conveyors
