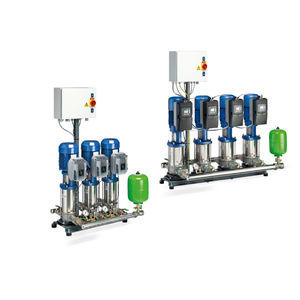

Industrial pump unit Hya-Solo D
waterelectrically-powered

industrial pump unit
industrial pump unit
Add to favorites
Compare this product


Characteristics

Application
industrial, water
Other characteristics
electrically-powered
Flow

Min.: 0 m³/h (0 ft³/h)

Max.: 65 m³/h (2,295.4533 ft³/h)

Pressure

Min.: 0.5 bar (7.252 psi)

Max.: 6 bar (87.023 psi)

Description

Hya-Solo D Main applications Building services Fire fighting and sprinkler systems Pressure boosting, fire fighting systems Water supply Technical data Q max 65.0 m³/h H max 150.0 m Design Fully automatic package single-pump system with 8-litre membrane-type accumulator. The system is started and stopped as a function of pressure. Application Water supply systems for residential and office buildings, irrigation and spray irrigation, rainwater harvesting and service water supply systems in trade and industry. Overview of technical data Q (50Hz) - 0.0 – 65.0 (m³/h) H (50Hz) - 10.0 – 150.0 (m) Type of bearing - Plain bearings Drive frequency - 50 Hz Type of drive - Electric motor Drive voltage - Low voltage Type of first impeller - Closed / Radial Other impeller types - Closed / Radial Impeller material (EN standard) - 1.4301 Type of installation - Long-coupled Type of coupling - Direct Type of lubrication - Product lubrication Discharge casing material (EN standard) - 1.4301 Max. permissible fluid temperature - 70.0 (°C) Nozzle position - In-line Number of pumps - 1 Maximum operating pressure - 16 BAR Pump set location - Dry installed Stage casing material (EN standard) - 1.4308 Suction characteristics - Non-priming Suitable for drinking water - Yes Type of connection - Screw-ended, flange Type of stage casing - Stage casing with diffuser Type of suction casing - 00 UNSPSC classification - 4015150300 Casing material (EN standard) - 1.4301 eClass assignment - 00000000, 36410101 Maximum inlet pressure - 6.0 (bar) Minimum inlet pressure - 0.5 (bar) Installation position - Vertical Shaft seal type - Mechanical seal
