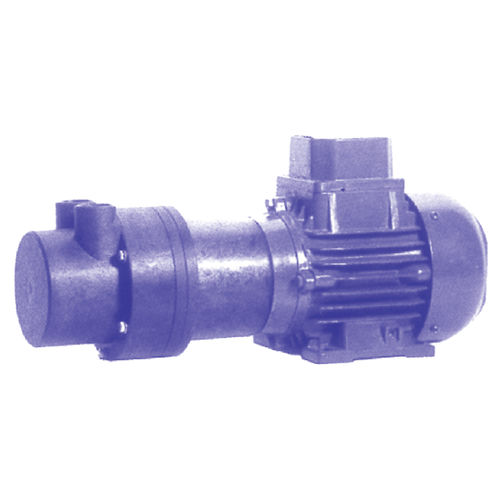

Water pump MPA41-31
with electric motormagnetic-drivenormal priming

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
with electric motor, magnetic-drive
Priming
normal priming
Technology
impeller
Domain
industrial
Material
aluminum, EPDM, stainless steel, PP, ceramic, plastic, PVDF
Other characteristics
flange
Flow

Min.: 5 l/min
(1.32086 us gal/min)

Max.: 900 l/min
(237.75485 us gal/min)

Power

750 W
(1.02 hp)

Description

Energy saving Available PP- PVDF Available in PP-PVDF-INOX-ALUMINUM Self-heating Maximum range from 5 to 900 l/m Attacks: Rigid duct flexible piping Flanged Operating Principle The magnetic pumps are characterized by the absence connection between the motor and the pump unit. The rotation of the impeller and obtained through induction Magnetic between two magnets which one coupled to the engine and the other drowned in the impeller. This principle ensures higher reliability, decreasing totally losses, facilitating and minimizing interventions The materials used for the construction of magnetic drive pumps are the source: • PP for special plastic material. • Ceramic (Alumina 99.7%) for pin and washers. • Rulon for compasses. • EPDM and Viton seals for
