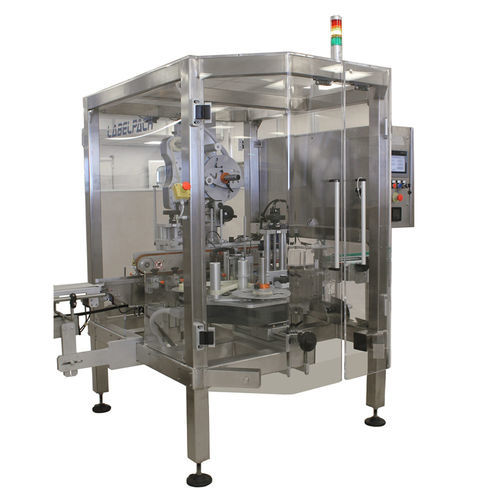

Automatic labeling machine Sistema TE

cartonhorizontalvertical

It is the automatic labelling system for the application of two “Tamper Evident” seal labels on opposite sides of pharmaceutical cartons. Labels can be applied in parallel or alternate positions. Standard features: - Double LABELX 140 ES labelling unit - Double horizontal and vertical micrometric adjustment unit with numeric position indicators - Loading flat belt for product accumulation (min load management) - Double side belts to separate the products at max speed of 250 pcs/min - Double toothed belts to move the products in the printing and labeling area - Product stabilising device with brushless motorisation - Double 90° label folding device with micrometric adjustments - Automatic speed synchronisation - MASTER support structure made of painted steel (stainless steel on request) - Total protections in transparent polycarbonate - Centralised electronics with Touch Screen operator panel with access for remote assistance - PLC unit with storage of operating parameters - Ind. 4.0 ready Optional accessories: - Photocell for transparent labels - Check presence of the labels onto the products - Thermal inkjet printers (TIJ) - Camera system - Automatic ejection system for defective products - IQ/OQ documentation
