Cement electric fusion machine LFM series

pure metalsfor industrial applications

Product overview

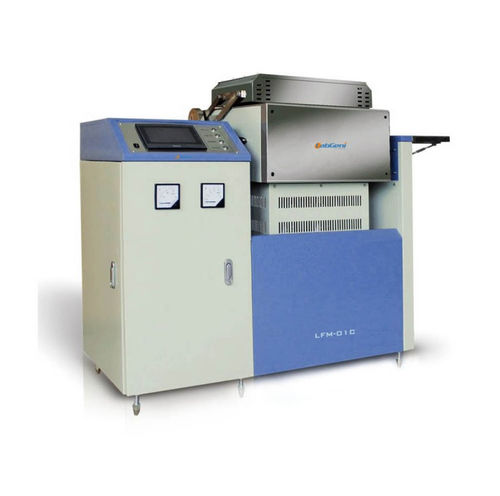

The LFM-01C and LFM-02C are multi-function automatic fusion machines designed for X-ray fluorescence (XRF) sample preparation. Suitable for steel, metallurgy, chemical, geological, cement, ceramics and refractory laboratories, they combine touch-screen operation, PLC and AI-assisted control to deliver reproducible fused beads for accurate XRF analysis.

Key features

• High operating reliability

Proven design refined over 15 years and validated in industrial XRF workflows to ensure stable continuous operation and low maintenance requirements.

• Flexible workflows

Available in two- or four-head configurations for medium-volume sample preparation. Supports one-time molding and pour molding, allows material addition and process observation during operation, and provides automatic sample input/output to reduce operator exposure and improve throughput.

• Optimized fusion performance

Synchronous furnace swing combined with sample holder rotation produces vortex motion during melting for uniform homogenization and efficient bubble discharge in minimal time.

• Accurate temperature control

Silicon carbide heating element with S-type Pt-Rh thermocouple, LCD touch-screen + PLC + AI control, self-test on startup and preset parameters for precise regulation and consistent analytical reproducibility across different melting temperatures.

• Protection and safety

Hardware and software dual protection against burnout, over-temperature and related faults to preserve long-term stable operation.

Main specifications

• Models: LFM-01C (4 samples, one-time molding or casting) and LFM-02C (6 samples, one-time molding)
• Control system: AI intelligent control with LCD touch-screen and PLC
• Heating element: Silicon carbide (SiC)
• Temperature sensor: S-type Pt-Rh thermocouple; accuracy ±2 °C (insulation)
• Heating rate: approx. 30 °C/min
• Rated temperature: LFM-01C up to 1250 °C (1300 °C max); LFM-02C up to 1100 °C (1150 °C max)
• Furnace swing angle: 0–40° adjustable
• Bracket rotation speed: LFM-01C 0–25 r/min; LFM-02C 0–17 r/min (stepless, forward/reverse)
• Working curves: 9 programmable groups
• Timing options: before standing / swing / after standing 0–160 min optional
• Limit continuous running time: 165 h
• Weight: LFM-01C 380 kg; LFM-02C 360 kg
• Power nominal: LFM-01C 8 kW; LFM-02C 10 kW (common power range 2–5 kW)
• Power supply: heating circuit 380V single-phase; control circuit 220V single-phase
• Dimensions (L×W×H): LFM-01C 1120×620×1050 mm; LFM-02C 1100×620×1050 mm
