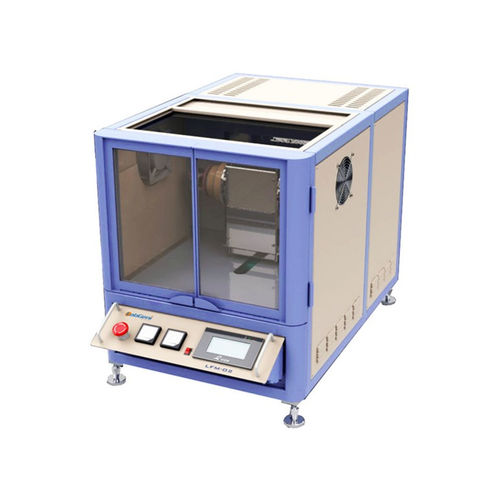

Cement electric fusion machine LFM-02A

pure metalsfor industrial applications

Overview
LFM-02A automatic fusion machine is a melting/sample preparation instrument designed for X-ray fluorescence (XRF) and inductively coupled plasma (ICP) analysis. It is suitable for laboratories and production environments in steel, metallurgy, chemical, geological, cement, ceramics and refractory sectors. The unit integrates a touchscreen control for straightforward programming and offers fast heating, precise temperature control and stable, energy-efficient operation to ensure reproducible fused samples.

Features

• Double-head design to process two samples alternately or simultaneously (automatic casting)
• Touchscreen display control for intuitive operation and recipe management
• Fast heating rate with precise temperature control (±2 °C with insulation)
• Energy-saving operation and stable thermal performance
• Good reproducibility of fused samples for reliable analytical results

Application industries

• Steel
• Metallurgy
• Chemical
• Geological / Mining
• Cement
• Ceramics
• Refractories

Main technical parameters

• Rated temperature: 1100 °C
• Heating rate: approx. 50 °C/min
• Sample spaces: 2 (alternate melting and automatic pouring/molding)
• Temperature accuracy: ±2 °C (with insulation)
• Swing angle: ±40°
• Beat frequency: 15 r/min
• Instrument weight: 100 kg
• Dimensions (L × W × H): 550 mm × 600 mm × 800 mm
• Rated power: 4.5 kW
• Rated voltage: single-phase 220 V
• Current rating: 25 A
• Rated frequency: 50 Hz

Model / Technical specifications

• Model: LFM-02A
• Rated temperature: 1100 °C
• Heating rate: ~50 °C/min
• Sample capacity: 2 spaces (two-head automatic casting)
• Temperature accuracy: ±2 °C
• Swing angle: ±40°
• Beat frequency: 15 r/min
• Weight: 100 kg
• Dimensions: 550 mm × 600 mm × 800 mm
• Rated power: 4.5 kW
• Rated voltage: single-phase 220 V
• Current: 25 A
• Frequency: 50 Hz
