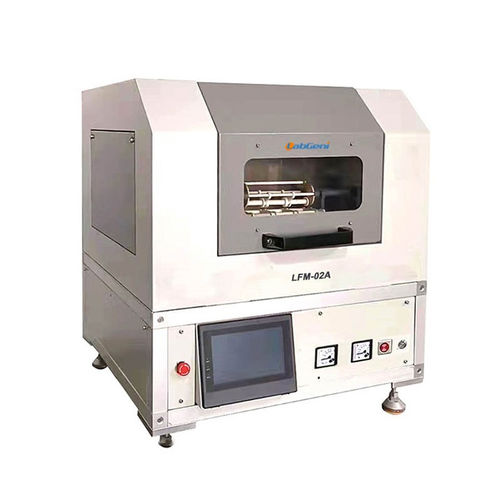

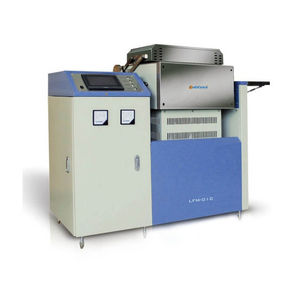

Pure metals electric fusion machine LFM-02A

for laboratory

Overview
The LFM-02A automatic fusion machine is designed for X-ray fluorescence (XRF) sample preparation and related analytical workflows. It integrates an intelligent manipulator linkage system to perform cold-state lift, automatic sample feeding, controlled melting, inversion molding, sample pouring, air cooling and automatic sampling for fully automated fusion processes. The unit is suitable for metallurgy, mining, ceramics, refractories, chemicals and quality control laboratories.

Key features

• Fully automated workflow: cold lift, automatic feeding, melting, inversion molding, pouring and sampling.
• Separated heating and control zones to protect electrical components from high-temperature gases.
• S-type platinum-rhodium thermocouple with PID control for ±1°C temperature accuracy in hold state.
• 7-inch color LCD touch screen with PLC control; two automatic modes (including pre-oxidation) and one manual mode; stores multiple heating curves.
• Silicon carbide rod heating for fast heating rates and long life; energy-saving polycrystalline mullite fiber closed furnace.

Furnace unit (polycrystalline mullite fiber closed furnace)

• Integrated furnace chamber with plug-in staggered port technology for improved sealing and strength.
• High-quality polycrystalline mullite fiber insulation for thermal efficiency and extended service life.
• High-temperature ceramic support bracket resistant to oxidation and thermal shock, longer lifespan than metal brackets.

Central control part

• Control system: PID intelligent control + PLC program control + 7-inch color LCD touch screen; easy operation and parameter setting.
• Temperature control: PID with smooth current regulation; temperature drift in holding state less than ±1°C.
• Swing and mold-reversing mechanism: frequency-converter and stepping motor control for adjustable swing amplitude and frequency to ensure uniform fusion.

Instrument protection measures

• Integrated layout with independent exhaust to prevent erosion of control components.
• Multi-level protection: software over-temperature cutoff and hardware over-temperature alarm with main circuit disconnection; self-test and fault prompts.

SPECIFICATIONS
Model: LFM-02A
Furnace temperature range (Max.): 0–1600°C; Common rated temperature: 0–1300°C
Heating element: Silicon carbide rod
Temperature control accuracy: ±1°C (S-type platinum-rhodium thermocouple)
Heating rate: ≥65°C/min
Maximum power: 4.5 kW; Typical working power: 1.0–2.5 kW (reserve power adjustable)
Swing amplitude: 0–70° (adjustable); Swing frequency: 0.25–1 Hz (adjustable)
Sample positions: 2 (expandable to 3)
Fusion speed: 10–18 minutes per 2–3 samples (depends on sample complexity)
Control system: Stores 9 default heating curves; up to 72 custom curves configurable
Heating output control: SCR phase-shift trigger control with automatic temperature compensation; supports multi-stage heating and automated pre-oxidation
Working mode: Bracket swing for uniform fusion; automatic molding and pouring suitable for alloy samples
Sample handling: Two-bracket design for simultaneous melting of two samples (expandable to three); one-button sequence for cover open, sample injection, melting, pouring and release; air-cooled linkage for safe sampling
Safety features: Fully enclosed design; independent exhaust; protective observation window
Protection functions: Over-voltage, over-current, burnout and over-temperature alarms; software and hardware redundancy; self-test prompts
Power supply: 220V 40A 50Hz
Dimensions (L×W×H): 660×570×655 mm; Weight: 65 kg
Platinum crucible specifications: Melting crucible 45 g (Pt 95% + Au 5%); forming crucible 35 g

Accessories list

• 1. Anhydrous mixed solvent 67:33 — 250 g — bottle — Qty 4
• 2. Anhydrous lithium tetraborate — 250 g — bottle — Qty 4
• 3. Ammonium bromide — 500 g — bottle — Qty 1
• 4. Mixed sample crucible — individual — Qty 4
• 5. Glass stirring rod — piece — Qty 2
• 6. Weighing spoon — set — Qty 2
• 7. White tray — piece — Qty 1
• 8. Stainless steel crucible tongs — set — Qty 1
• 9. Thermocouple — S type — piece — Qty 1
• 10. Silicon carbide rod — special U-shaped rod — set — Qty 1
• 11. Fuse core — 4A φ10×38 — piece — Qty 2
• 12. Fuse core — 1A φ10×38 — piece — Qty 2
• 13. Intermediate relay — piece — Qty 1
• 14. Photoelectric switch — piece — Qty 1
• 15. Power switch button — piece — Qty 1
• 16. High temperature bracket — set — Qty 1
• 17. Operating instructions — book — Qty 1
• 18. Installation and commissioning report — copy — Qty 2
• 19. Product certification — copy — Qty 1
• 20. Random list — copy — Qty 1

Technical specifications

• Model: LFM-02A
• Max furnace temperature: 1600°C
• Rated temperature range: 0–1300°C
• Temperature control accuracy: ±1°C (S-type thermocouple)
• Heating element: Silicon carbide rod
• Max power: 4.5 kW; Typical 1.0–2.5 kW
• Heating rate: ≥65°C/min
• Swing amplitude/frequency: 0–70°; 0.25–1 Hz
• Sample positions: 2 (expandable to 3)
• Power supply: 220V 40A 50Hz
• Dimensions: 660×570×655 mm; Weight: 65 kg
