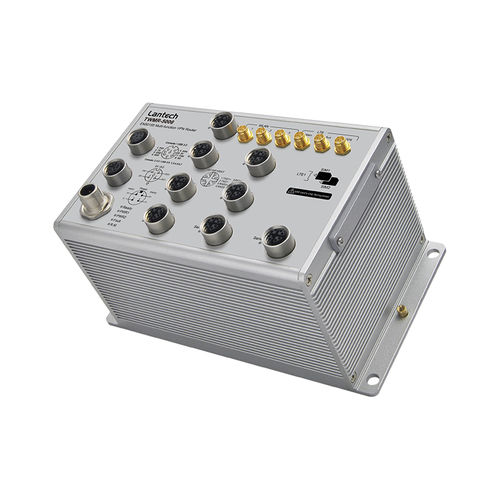

TWMR-5006
EN50155 Multifunction VPN Router w/1x WiFi 11ac + 1 LTE 4G + 2 serial ports + 6 Gigabit X-coded Ethernet Switch w/Load Balancing**, TWCC**, VPN, Protocol Gateway, Storage**; WV input
Built-in 6 Gigabit X-coded Ethernet switch
WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz
Support WIFI 802.11e traffic prioritization and WMM
MIMO technology 3T3R up to 6 antenna; Detachable antenna connectors with 6 SMA/QMA** type incl. 3 WIFI + 3 LTE
Fast roaming**, 802.11r work with Lantech controller
Supports AP/ BRIDGE/Client modes
Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP*,AES)/ WPA2/ WPA2-PSK (TKIP*,AES)
Optional TWCC** (Train Wireless Carriage Coupling)for auto wireless coupling
VPN router for Multi-site VPN, OpenVPN, L2TP, IPsec, PPTP**, L2 over GRE
Load Balancing** support 8 mechanism
Optional EMMC Flash storage on-board**
Support NAT and Firewall
Support Modbus gateway on serial ports
Support 2 RS422/485 ports with 2.5KV isolation or 2x RS232 ports
Optional 2 GT smart bypass protection
Galvanic isolation on WV model from 16.8V~137.5V input
Environmental monitoring for router inside info with voltage, current, temperature; WIFI & LTE graphic signal strength & TX/RX rate display
Editable login page of captive portal for hot-spot application
USB port to backup, restore the configuration file and upgrade firmware*; Dual image firmware*
