Managed ethernet switch TWMR-5004
10 portsgigabitserial

managed ethernet switch
managed ethernet switch
Add to favorites
Compare this product


Characteristics

Type
managed
Number of ports
10 ports
Network
gigabit, serial, wireless
Mounting
wall
Other characteristics
fast, EN50155, USB
Applications
industrial

Description

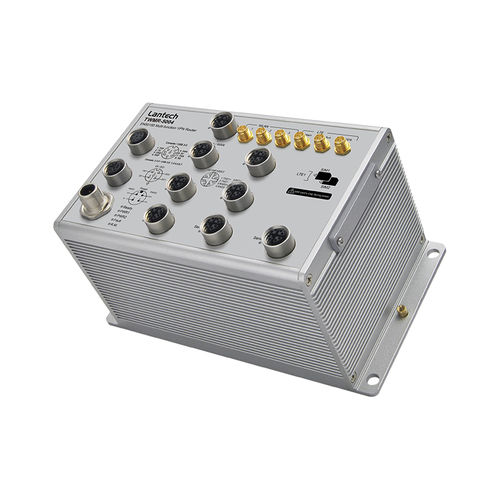

TWMR-5004 EN50155 Multifunction VPN Router w/1x WiFi 11ac + 1 LTE 4G + 2 serial ports + 4 Gigabit X-coded Ethernet Switch + 2WAN/2LAN w/Load Balancing**, TWCC**, VPN, Protocol Gateway, Storage**; WV input Built-in 4 Gigabit X-coded Ethernet Switch + 2WAN/2LAN ports WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz Support WIFI 802.11e traffic prioritization and WMM MIMO technology 3T3R up to 6 antenna; Detachable antenna connectors with 6 SMA/QMA** type incl. 3 WIFI + 3 LTE Fast roaming**, 802.11r work with Lantech controller Supports AP/ BRIDGE/Client modes Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP*,AES)/ WPA2/ WPA2-PSK (TKIP*,AES) Optional TWCC** (Train Wireless Carriage Coupling)for auto wireless coupling VPN router for Multi-site VPN, OpenVPN, L2TP, IPsec, PPTP**, L2 over GRE Load Balancing** support 8 mechanism Optional EMMC Flash storage on-board** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/485 ports with 2.5KV isolation or 2x RS232 ports Optional 2 GT smart bypass protection Galvanic isolation on WV model from 16.8V~137.5V input Environmental monitoring for router inside info with voltage, current, temperature; WIFI & LTE graphic signal strength & TX/RX rate display Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware*; Dual image firmware*

Catalogs

TWMR-5004
TWMR-5004
9 Pages
