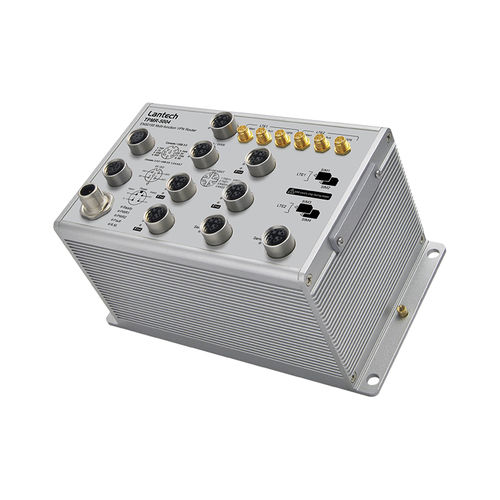

Wireless communication router TPMR-5004 series

datamanaged4G

EN50155 Multifunction VPN Router up to 2 LTE 4G + 2 serial ports + 4 Gigabit X-coded PoE Switch + 2 WAN/LAN w/LoadBalancing, VPN, Protocol Gateway, Storage**; WV input -Built-in 4 Gigabit X-coded PoE Ethernet managed switch +2 WAN/LAN ports, Up to 2x LTE 4G Module ( 4SIMS) -Support LTE Cat 6 (APAC & EUNA models) or Cat 12/9/13 (WW model) -Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP,AES)/ WPA2/ WPA2-PSK (TKIP,AES) -VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE -Load Balancing built-in 5 mechanisms -Optional EMMC Flash storage on-board** -Optional eSIM chip enables router with versatile data plans** -Support NAT and Firewall -Support Modbus gateway on serial ports -Support 2 RS422/RS485 ports with 2.5KV isolation or 2x RS232 ports -Optional 2 GT smart bypass protection -Galvanic isolation on WV model from 16.8V~137.5V input with PoE budget 60W -Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; LTE graphic signal strength -Editable login page of captive portal for hot-spot application -USB port for backup, restore the configuration file and upgrade firmware; Dual image firmware -IP 65 /54 Aluminum housing for best heat dissipation and preventing moist ingress -EN50155/61373/45545verification for railway application Lantech TPMR-5004 series is a next generation EN50155 multi-function VPN router up to 2 x LTE modem +4 Gigabit X-coded PoE Ethernet switch + 2 WAN/LAN ports + 2 serial ports that supports advanced function of VPN, Load-balancing , EMMC Flash Storage**
