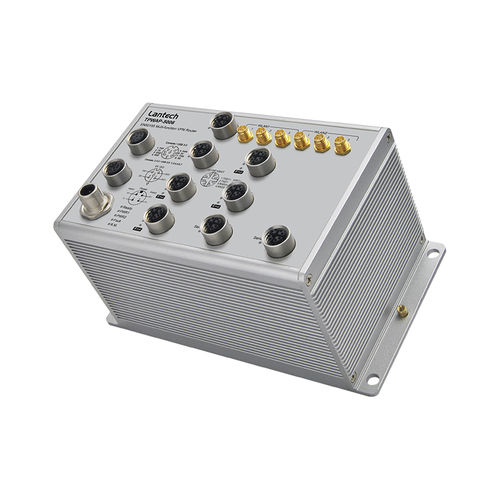

Wireless communication router TPWAP-5004

wireless communication router
wireless communication router
Add to favorites
Compare this product


Ethernet, RS232, LAN, WAN, wireless, PoE, MIMO, radio
wall-mount, built-in
Number of ports
12 ports
Other characteristics


TPWAP-5004 EN50155 Multifunction VPN Router w/1x WiFi 11ac + 2 serial ports** + 4 Gigabit X-coded PoE Switch + 2 WAN/LAN w/Load Balancing**, TWCC**, VPN, Protocol Gateway**, Storage**; WV input Built-in 4 Gigabit X-coded PoE Ethernet switch +2 WAN/LAN ports WIFI radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz Support WIFI 802.11e traffic prioritization and WMM MIMO technology 3T3R up to 6 antenna; Detachable antenna connectors with 6 SMA/QMA** type incl. 3 WIFI Fast roaming**, 802.11r work with Lantech controller Supports AP/ BRIDGE/Client modes Advanced wireless security WEP64/128bits/ WPA/ WPA-PSK (TKIP*,AES)/ WPA2/ WPA2-PSK (TKIP*,AES) Optional TWCC** (Train Wireless Carriage Coupling)for auto wireless coupling VPN router for Multi-site VPN, OpenVPN, L2TP, IPsec, PPTP**, L2 over GRE Optional Air-teaming** for WI-FI high-sustainability and aggregated bandwidth Load Balancing** support 8 mechanism Optional EMMC Flash storage on-board** Support NAT and Firewall Optional support Modbus gateway on serial ports Support 2 RS422/485 ports with 2.5KV isolation or 2x RS232 ports Optional 2 GT smart bypass protection Galvanic isolation on WV model from 16.8V~137.5V input with PoE budget 60W Environmental monitoring for router inside info with voltage, current, temperature and total PoE load; WI-FI graphic signal strength & TX/RX rate display Editable login page of captive portal for hot-spot application USB port to backup, restore the configuration file and upgrade firmware*; Dual image firmware*
