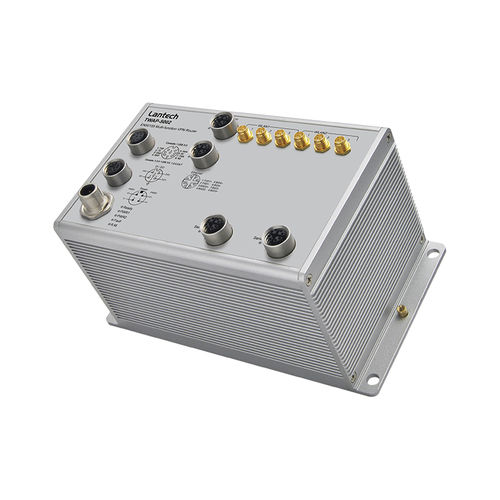

Wireless communication router TWAP-5002 series

RS232WANWiFi

EN50155 Multifunction VPN Router w/up to 2 WiFi 11ac + 2 serial ports**+ 2 Gigabit X-coded Ethernet(incl.1 PD) for Load Balancing, VPN, Storage**; WV input; IP65/54 Built-in up to 2x Wi-Fi 11ac/a/b/g/n module + 2xGigabit X-coded ports(incl. 1PD) Optional 2 serial ports with 2.5K isolation(RS422/RS485) or w/o isolation(RS232)** Wi-Fi radio for 802.11ac/a/b/g/n with 5GHz or 2.4GHz; MIMO 3T3R Support Client-base roaming Supports AP/ Bridge/ Client/ MESH modes Support 802.11s Wireless Mesh Network VPN router for Multi-site VPN, OpenVPN, L2TP over IPsec, IPsec, L2 over GRE , IPGRE Load Balancing built-in 5 mechanisms Optional EMMC Flash storage on-board** Support NAT and Firewall Optional support Modbus gateway on serial ports Galvanic isolation on WV model from 16.8V~137.5V input Built-in environmental monitoring for router inside info with voltage, current, temperature; Wi-Fi graphic signal strength Editable login page of captive portal for hot-spot application USB port for backup, restore the configuration file and upgrade firmware; Dual image firmware IP 65 /54 Aluminum housing for best heat dissipation and preventing moist ingress EN50155/61373/45545 verification for railway application
