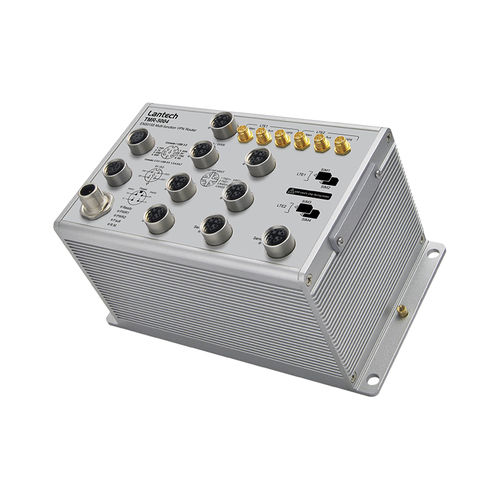

Data communication router TMR-5004
EthernetRS2324G

data communication router
data communication router
Add to favorites
Compare this product


Characteristics

Type
data
Network
Ethernet, RS232, 4G, IP, LTE, PoE, USB
Mounting
built-in
Number of ports
10 ports
Other characteristics
VPN
Applications
industrial

Description

TMR-5004 EN50155 Multifunction VPN Router + up to 2 LTE 4G + 2 serial ports + 4 Gigabit X-coded Ethernet Switch + 2WAN/2LAN w/Load Balancing**, VPN, Protocol Gateway, Storage**; WV input Built-in 4 Gigabit X-coded Ethernet Managed Switch + 2WAN/2LAN ports , Up to 2x LTE 4G Module ( 4SIMS) Detachable antenna connectors with 6 SMA/QMA** VPN router for Multi-site VPN, OpenVPN, L2TP, IPsec, PPTP**, L2 over GRE Load Balancing** support 8 mechanism Optional EMMC Flash storage on-board** Support NAT and Firewall Support Modbus gateway on serial ports Support 2 RS422/485 ports with 2.5KV isolation or 2x RS232 ports Optional 2 GT smart bypass protection Galvanic isolation on WV model from 16.8V~137.5V input Environmental monitoring for router inside info with voltage, current, temperature and total PoE load;; LTE signal strength & TX/RX rate display Editable login page of captive portal for hot-spot application USB port for backup, restore the configuration file and upgrade firmware*; Dual image firmware* IP 65 /54 Aluminum housing for best heat dissipation and preventing moist ingress EN50155/61373/45545verification for railway application

Catalogs

No catalogs are available for this product.

See all of Lantech Communications Europe GmbH‘s catalogs
