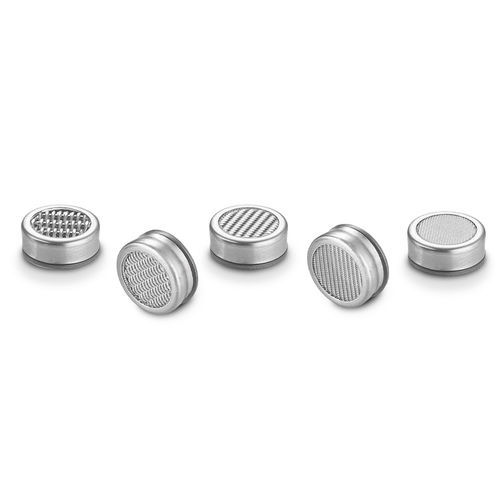

Filter disc SCRM series

This stainless steel safety screen filter is designed to protect critical fluid control components against rogue contamination. The filter uses a woven wire mesh design that is bonded together using a proprietary process to guarantee high strength and integrity. It is designed for extremely high pressure applications where meeting such pressures could otherwise cause a screen to rupture if it clogged. The filter is designed to slip into a drilled flat bottom hole and should be retained by a secondary means. This last chance filter is available in a range of micron ratings from 40 to 300 microns. - Mounting Configuration: Cartridge - Customer Retained - Lohm Rate: As low as 35 Lohms - Micron Rating: 40 to 300 microns - Part Diameter: 9.93 mm - Screenable Passageway Diameter: As large as 7.56 mm General Performance - Screen Type: Woven Wire Mesh - Flow Direction: Bidirectional Flow - Minimum Burst Pressure: 24 MPa Materials - Body: 305 Stainless Steel - Pintal: 17-7 Stainless Steel - Screen: 316 Stainless Steel Part Numbers & Specifications - SCRM7101040S: 40 microns, 70 Lohms, 11.6 mm², 0.22, 0.71 grams, 1INST080661S - SCRM7101075S: 75 microns, 60 Lohms, 9.6 mm², 0.39, 0.71 grams, 1INST089553S - SCRM7101125S: 125 microns, 65 Lohms, 7.4 mm², 0.65, 0.84 grams, 1INST089555S - SCRM7101170S: 170 microns, 45 Lohms, 8.7 mm², 1.53, 0.88 grams, 1INST089557S - SCRM7101300S: 300 microns, 35 Lohms, 10.0 mm², 6.75, 0.90 grams, 1INST089559S - Flow Curve: See flow curve image in secondary images. - Cross Section View: See cross section image in secondary images. - Dimensional View: See dimensional view image in secondary images. - Installation Hole Details: See installation hole images in secondary images for different micron versions (40, 75, 125, 170, 300 microns). Key Product Facts: - Mounting Configuration: Cartridge - Customer Retained - Lohm Rate: As low as 35 Lohms - Micron Rating: 40 to 300 microns - Part Diameter: 9.93 mm - Screenable Passageway Diameter: As large as 7.56 mm
