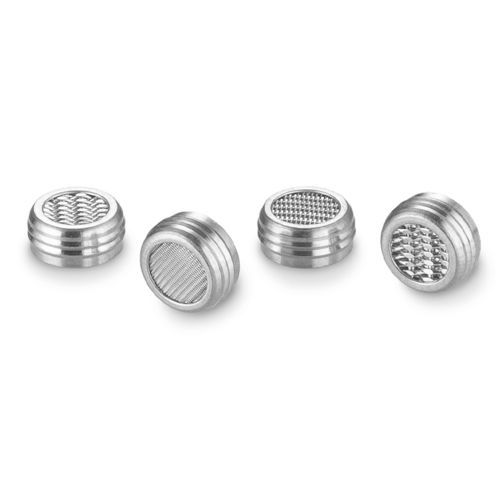

Stainless steel mesh filter disc SCRM4551075S

This stainless steel safety screen filter is designed to protect critical fluid control components against rogue contamination. Specifically designed for easy installation into plastic housings and fittings, this filter utilizes a unique press-in design to ensure retention. The filter’s woven wire mesh is bonded together using a proprietary process that offers superior integrity and product life. This last chance filter is available in a range of micron ratings from 40 to 170 microns. - Mounting Configuration: Press-In - Into Plastic - Lohm Rate: As low as 170 Lohms - Micron Rating: 40 to 170 microns - Part Diameter: 5.46 mm - Screenable Passageway Diameter: 5.36 mm General Performance - Screen Type: Woven Wire Mesh - Flow Direction: Bidirectional Flow - Installation Hole Drawing Number: 1INST043237S - Maximum Working Pressure: Dependent on Housing Material, Configuration, and Operating Conditions Materials - Body: 303 Stainless Steel - Screen: 316 Stainless Steel Part Numbers & Specifications - SCRM4551040S: 40 microns, 185 Lohms, 2.8 mm², 0.05, 0.26 grams - SCRM4551075S: 75 microns, 170 Lohms, 2.4 mm², 0.10, 0.26 grams - SCRM4551125S: 125 microns, 255 Lohms, 2.1 mm², 0.18, 0.26 grams - SCRM4551170S: 170 microns, 205 Lohms, 2.8 mm², 0.49, 0.26 grams Installation Procedure - Installation procedure available as PDF (see documents section). Installation & Manufacturing Tools - Installation Tool Drawing Number: CCRT0900170S Replacement Parts & Accessories - CCRT0900170S: 5.5 mm Press-In Screen Installation Tool Key Product Facts - Mounting Configuration: Press-In - Into Plastic - Lohm Rate: As low as 170 Lohms - Micron Rating: 40 to 170 microns - Part Diameter: 5.46 mm - Screenable Passageway Diameter: 5.36 mm Flow Curve, Cross Section, Dimensional, and Installation Hole Views - See images in the secondary images section for detailed technical diagrams. For More Information - Industrial MicroHydraulics Handbook of Automotive and Industrial Solutions Page B33-B34, B36 (see documents section). CAD Envelope - 5.5 mm Press-In Safety Screen Filter Model (downloadable from manufacturer site). Resource Cards - System Performance Depends on Cleanliness, ROB Number - A Rating System For Safety Screens, Contamination Control, Adapting Fluid Control Components for Hydrogen Applications (see manufacturer site for details). Technical Specifications - Screen Type: Woven Wire Mesh - Flow Direction: Bidirectional - Installation Hole Drawing Number: 1INST043237S - Maximum Working Pressure: Dependent on Housing Material, Configuration, and Operating Conditions - Body Material: 303 Stainless Steel - Screen Material: 316 Stainless Steel - Micron Ratings: 40, 75, 125, 170 microns - Lohm Rates: 170–255 Lohms - Part Diameter: 5.46 mm - Screenable Passageway Diameter: 5.36 mm - Approximate Weight: 0.26 grams
