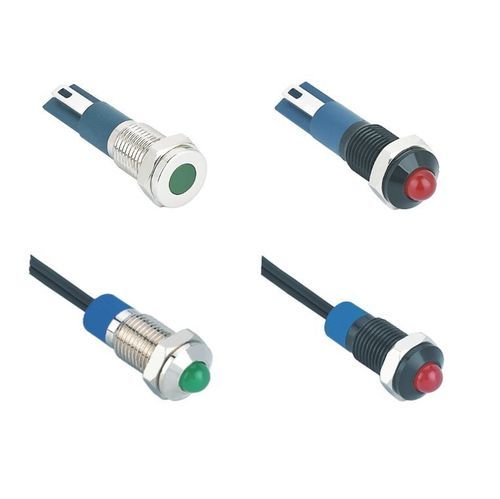

LED indicator light SVEM8 series

panel-mountIK06IP67

The SVEM8 LED indicator lights with a metallic body offer high brightness and long service life: - Electrical: Power supply 12-24V AC/DC or 230V AC. - LED: SVEM8 indicator lights are available in blue, green, yellow, white, and red. LED lifespan >40,000 hours. Consumption 40,000 hours - Consumption: <20 mA - Mounting: 8 mm diameter cutout, max panel thickness 6 mm - Body: black anodized brass or nickel-plated brass - Base: PA self-extinguishing UL94-VO - Head shape: domed or flat - Protection: IP67, IK06 (flat head) - Output: 2.8 mm tabs or 15 cm wires - Securing: metal nut, supplied with sealing gasket - Conformities: CE, RoHS, Reach - Standard: EN61547-2000 Variants and Ordering Codes (examples): Order Code | Power Supply | Body Material | Head Shape | LED Color | Stocked Product SVEM8-B-BL-24W | 12-24 V AC/DC | Black anodized brass | Domed | White | In stock SVEM8-B-BL-24B | 12-24 V AC/DC | Black anodized brass | Domed | Blue | In stock SVEM8-B-BL-24Y | 12-24 V AC/DC | Black anodized brass | Domed | Yellow | In stock SVEM8-B-BL-24R | 12-24 V AC/DC | Black anodized brass | Domed | Red | In stock SVEM8-B-BL-24G | 12-24 V AC/DC | Black anodized brass | Domed | Green | In stock SVEM8-P-BL-24W | 12-24 V AC/DC | Black anodized brass | Flat | White | In stock SVEM8-P-BL-24B | 12-24 V AC/DC | Black anodized brass | Flat | Blue | In stock SVEM8-P-BL-24Y | 12-24 V AC/DC | Black anodized brass | Flat | Yellow | In stock SVEM8-P-BL-24R | 12-24 V AC/DC | Black anodized brass | Flat | Red | In stock SVEM8-P-BL-24G | 12-24 V AC/DC | Black anodized brass | Flat | Green | In stock
