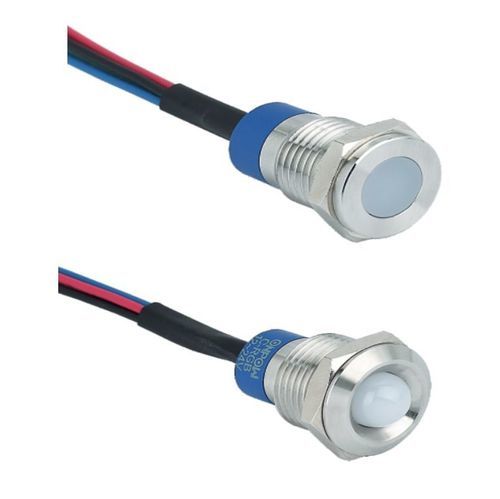

LED indicator light SVEM12 TRI LED

panel-mountweather-resistantIP67

Summary SVEM12 TRI LED indicators in red, green and blue, with anti-vandal metal body, for 24 V DC supply. Designed to signal changes of state in electrical circuits.

Characteristics

• Electrical: 24 V DC supply with required polarity. 4-wire wiring: 1 common wire = cathode (-) and 3 wires to feed each LED = anode (+); wire insulation color matches the LED color.
• LED: Fitted with 3 LEDs (blue, red, green). Consumption < 20 mA.
• Physical: Panel cut-out Ø12 mm, maximum panel thickness 6 mm. Body in black anodized brass or nickel-plated brass. Plastic base PA self-extinguishing UL94-VO. Domed or flat head. Protection rating IP67; mechanical protection IK06 (depending on version). Wire exit length 15 cm. Fastening by metal nut; supplied with sealing gasket.

Functions

• LED indicator for signalling an electrical state, suitable for installation on control panels or electrical cabinet doors.

Advantages

• High luminous efficiency (high-brightness LEDs).
• Sealing (IP67) allowing outdoor installation.
• Long LED life (≥ 40 000 hours).
• Durable metal anti-vandal body.

Variants and ordering codes Code | Body material | Head shape | Stock status
SVEM12-B-BF-24RGB | Black anodized brass | Domed | instock
SVEM12-P-BF-24RGB | Black anodized brass | Flat | instock
SVEM12-B-NF-24RGB | Nickel-plated brass | Domed | instock
SVEM12-P-NF-24RGB | Nickel-plated brass | Flat | instock

Resources Product presentation and datasheet available in PDF format (product sheets and commercial presentation).

Technical specifications

• Model: SVEM12 TRI LED
• Panel cut-out: Ø12 mm
• Supply: 24 V DC (polarity required)
• Consumption: < 20 mA
• Wiring: 4 wires (1 common cathode, 3 colored anodes)
• LED: red, green, blue
• Materials: body in black anodized brass or nickel-plated brass; base PA UL94-VO
• Head: domed or flat
• Protection rating: IP67; mechanical protection IK06 (depending on version)
• Maximum panel thickness: 6 mm
• Wire length: 15 cm
• LED life: ≥ 40 000 hours
• Compliances: CE, RoHS, REACH
• Applicable standard mentioned: EN61547-2000
