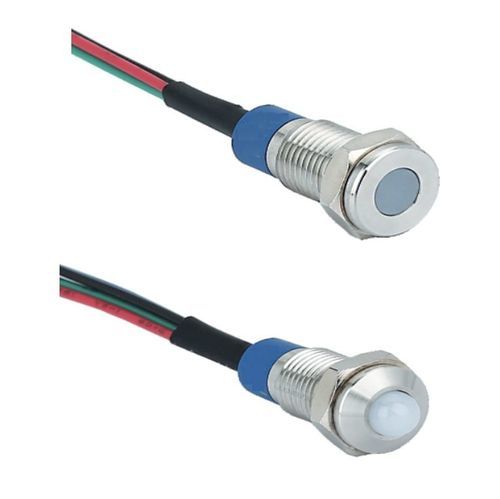

LED indicator light SVEM8 series

panel-mountself-extinguishingIK06

Overview
The SVEM8 tri-LED metal-bodied panel indicators deliver high brightness and long service life. They signal changes of circuit state and are suitable for mounting on control panels or electrical cabinet doors.

Characteristics

• Electrical: 24 V DC supply with required polarity. The indicator is fitted with 4 wires: 1 common wire = cathode (-) and 3 wires to feed each LED = anode (+). Insulation color corresponds to the LED color it powers.
• LED: 3 LEDs (blue, red and green). Consumption < 20 mA.
• Physical: Panel cut-out Ø8 mm, max panel thickness 6 mm. Body in black anodized brass or nickel-plated brass. Base in PA self-extinguishing plastic UL94-VO. Head shape: domed or flat. Protection rating IP67. IK06 (for flat-head versions SVEM22-P). Cable exit by wires length 15 cm. Secured by metal nut. Supplied with sealing gasket.

Functions

• Visual indication of electrical states via LEDs (status signalling, alarms, supervision, etc.).

Benefits

• High brightness thanks to high-performance LEDs.
• Sealing (IP67) suitable for outdoor installation or humid environments.
• Long life: LEDs rated for a minimum of 40,000 hours.
• Robustness: metal vandal-resistant body.

Variants and ordering codes
SVEM8-B-BF-24RGB | Body: black anodized brass | Head: domed | instock
SVEM8-P-BF-24RGB | Body: black anodized brass | Head: flat | instock
SVEM8-B-NF-24RGB | Body: nickel-plated brass | Head: domed | instock
SVEM8-P-NF-24RGB | Body: nickel-plated brass | Head: flat | instock

Resources
Documents available (presentation, product sheet, technical data sheet).

Technical specifications

• Supply: 24 V DC (polarity required).
• Connection: 4 wires (1 common cathode -, 3 anodes + for each LED).
• LED colours: red, green, blue.
• Consumption: < 20 mA.
• Cut-out: Ø 8 mm, max panel thickness 6 mm.
• Materials: body in black anodized brass or nickel-plated brass; base in PA UL94-VO plastic.
• Head shapes: domed or flat.
• Protection rating: IP67.
• Impact rating: IK06 (flat-head versions SVEM22-P indicated).
• Wire length: 15 cm (exit by wires).
• Fixing: metal nut + sealing gasket supplied.
• LED lifetime: ≥ 40 000 hours.
• Compliances: CE, RoHS, REACH. Applicable standard: EN61547-2000.
