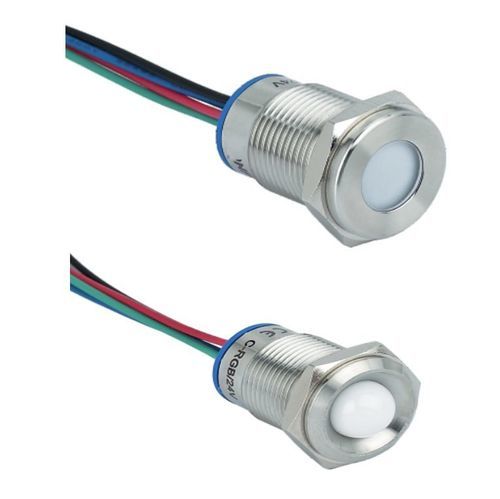

LED indicator light SVEM16 TRI LED

panel-mountIP67corrosion-resistant

Overview
3-LED Ø16 panel indicator with metal anti-vandal body and IP67 protection. The SVEM16 TRI LED indicators provide high brightness and long LED lifetime. Designed for status signalling on control panels and electrical cabinet doors.

Electrical characteristics

• Supply: 24 VDC (polarity defined).
• Connection: lead wires (length 15 cm).
• Wiring: 4 wires total — 1 common wire (black insulation) = cathode (−); 3 separate wires to power each LED = anode (+), wire insulation color matches LED color.
• Consumption: < 20 mA.

LED

• Configuration: 3 LEDs (blue, red, green).
• High brightness.
• Lifetime: minimum 40,000 hours.

Physical

• Panel cutout: Ø 16 mm.
• Maximum panel thickness: 10 mm.
• Body: black anodized brass or nickel-plated brass.
• Base: PA plastic, self-extinguishing UL94‑V0.
• Head shape: domed or flat.
• Fastening: metal nut; supplied with sealing gasket.
• Protection rating: IP67.
• IK06 indicated for some flat-head versions (reference SVEM22-P on datasheet).

Functionality
LED indicator for signalling an electrical state: installed on control panels or electrical cabinet doors to indicate circuit state changes.

Advantages

• High brightness from three performance LEDs.
• Sealing suitable for outdoor installation (IP67).
• Long LED lifetime (≥ 40,000 h).
• Metal anti-vandal body.

Customizable options

• Other LED colors available on request.
• Alternative voltages: 6 VDC or 12 VDC available on request.
• Common anode (+) option on request.
• Marking on lens possible.
• Specific lead length on request.

Variants and order codes (excerpt)

• SVEM16-B-BF-24RGB | Black anodized brass | Domed | in stock
• SVEM16-P-BF-24RGB | Black anodized brass | Flat | in stock
• SVEM16-B-NF-24RGB | Nickel-plated brass | Domed | in stock
• SVEM16-P-NF-24RGB | Nickel-plated brass | Flat | in stock

Standards and compliance

• Compliances: CE, RoHS, REACH.
• Applicable standard: EN61547-2000.

Resources
Documentation available: SVEM metal indicators product overview and product datasheet (PDF).
