LED indicator light SVEM22 series

threadedpanel-mountself-extinguishing

Description

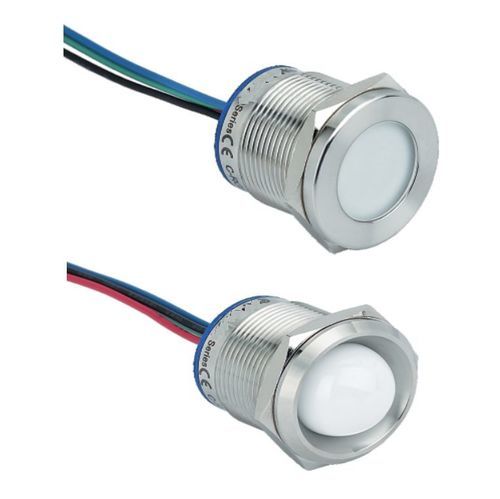

Tri-colour LED indicator Ø22 – metal vandal-resistant body – IP67 and IK06. Three-LED (red, green, blue) indicator providing high brightness and long lifetime, intended for signalling electrical statuses on control panels or cabinet doors.

Electrical

• Supply: 24 VDC (polarity required).
• 4-wire connection: 1 common wire (cathode -), 3 separate anode wires (+) (each wire powers one LED; insulation colour matches LED colour).
• Total consumption < 20 mA.

LED

• Three LEDs: blue, red and green.
• High brightness.
• Typical minimum lifetime: 40,000 hours.

Physical and mechanical

• Panel cut-out Ø22 mm (max panel thickness 10 mm).
• Body in black anodised brass or stainless steel.
• Base in self-extinguishing PA plastic (UL94-V0).
• Head available domed or flat (flat versions SVEM22-P: IK06).
• Protection rating IP67 (suitable for outdoor and humid environments).
• Cable exit: 15 cm wires (standard).
• Secured by metal nut; supplied with sealing gasket.

Functions

• Visual signalling of an electrical status (e.g. circuit state change).
• Installation on control panels and electrical cabinet doors.

Benefits

• High brightness for excellent visibility.
• IP67 sealing for outdoor or humid environments.
• Long LED lifetime.
• Robust, vandal-resistant metal construction.

Variants and order codes (table)
Order code | Body material | Head shape | Stock status
SVEM22-B-BF-24RGB | Black anodised brass | Domed | instock
SVEM22-P-BF-24RGB | Black anodised brass | Flat | instock
SVEM22-B-SF-24RGB | Stainless steel | Domed | instock
SVEM22-P-SF-24RGB | Stainless steel | Flat | instock

Standards and compliance

• Compliance: CE, RoHS, REACH.
• Applicable standard mentioned: EN61547-2000.

Available resources

• Product datasheet (downloadable document).
• Product presentation / brochure (downloadable).

Characteristics / technical specifications

• Nominal supply: 24 VDC (polarity).
• Consumption: < 20 mA.
• LEDs: 3 colours (red, green, blue).
• Panel cut-out: Ø22 mm.
• Maximum panel thickness: 10 mm.
• Body: black anodised brass or stainless steel.
• Base: PA plastic (UL94-V0).
• Available heads: domed or flat.
• Protection rating: IP67.
• Impact resistance: IK06 (for flat head versions SVEM22-P).
• Wires: 15 cm exit, 4 conductors (1 common, 3 anodes).
• Fixing: metal nut supplied with sealing gasket.
