LED indicator light SVEM16 seriespanel-mountIP67vandal-proof
Add to favorites
Compare this product
Characteristics
- Technology
- LED
- Mounting
- panel-mount
- Protection level
- IP67, vandal-proof, self-extinguishing, IK06, waterproof
- Other characteristics
- signaling
Description

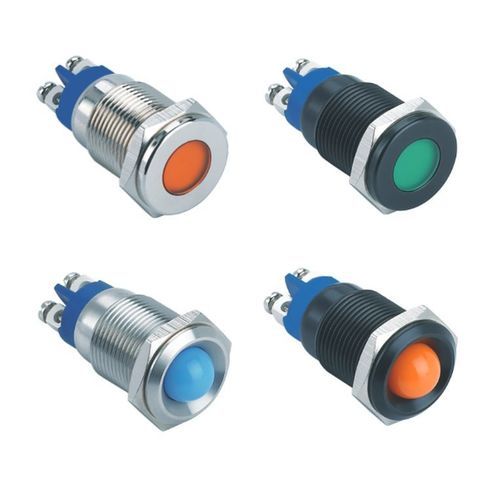

The SVEM16 LED indicator lights with a metallic body offer high brightness and long lifespan:
- Electrical: Power supply 12-24V AC/DC or 230V AC.
- LED: SVEM16 indicator lights are available in blue, green, yellow, white, and red. LED lifespan >40,000 hours. Consumption 40,000 hours
- Consumption: <20 mA
- Mounting: 16 mm diameter cutout, max panel thickness 10 mm
- Body: black anodized brass or nickel-plated brass
- Base: self-extinguishing PA plastic UL94-VO
- Head shape: domed or flat
- Protection rating: IP67, IK06 (flat head)
- Connection: screw terminals
- Securing: metal nut, supplied with sealing gasket
- Compliance: CE, RoHS, Reach
- Standard: EN61547-2000
