TFT-LCD monitor 2705-B series

LED backlightindustrialfor digital signage

Product overview

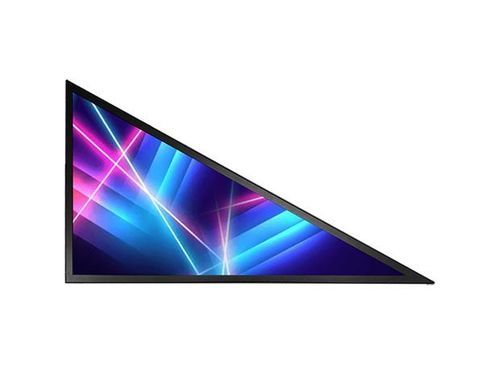

The 2705-B is a 27-inch TFT LCD display with a triangular display format and Full HD 1920 x 1080 resolution. It belongs to Litemax's Spanpixel series and features a 1000 cd/m² LED backlight for sunlight readability, LVDS panel interface and HDMI/DisplayPort inputs. The product is intended for digital signage and industrial/commercial installations requiring high brightness and efficient power use.

Main features

• Triangle display format
• Brightness: 1000 cd/m² (sunlight readable)
• Color saturation: 91% NTSC, 16.7M colors
• Wide viewing angle: 178° horizontal / 178° vertical
• LED backlight with BL MTBF ~100,000 hours
• Low power consumption: typical 26W (variants up to 29W)
• Inputs: HDMI, DisplayPort; LVDS panel interface

Technical specifications
Model: SSF2705-B / SSH2705-B / SSD2705-B
Size: 27-inch (display area 578.199 x 333.835 mm)
Resolution: 1920 x 1080 (16:9)
Brightness: 1000 cd/m²
Contrast ratio: 960:1
Pixel pitch: 0.3114 x 0.3114 mm (PPI 82)
Viewing angle: 178° / 178°
Color: 91% NTSC, 16.7M colors
Response time: 14 ms (typical)
Panel interface: LVDS
Input interface: HDMI, DisplayPort
Input power: DC 12V
Power consumption: 26W / 29W (variant dependent)
Dimensions: 640.65 x 371.44 x 16.85 mm / 644.7 x 375 x 45.6 mm
Bezel: variant values; Weight (net): 1.7 kg / 2.7 kg
Mounting: VESA 100 x 100 mm (variant dependent)
OSD: 4 keys (Power, Menu, +, -); Controls: brightness, color, contrast, auto turning, H/V position
Operating temperature: 0°C to 50°C; Storage: -20°C to 60°C

Applications

• Digital signage and advertising displays
• Public transportation systems and ticketing
• Exhibition halls and retail environments
• Vending machines and kiosks

Compliance and reliability

• LED backlight MTBF approximately 100,000 hours
• Designed for continuous commercial operation within specified temperature range
• VESA mounting for integration into signage and industrial enclosures
