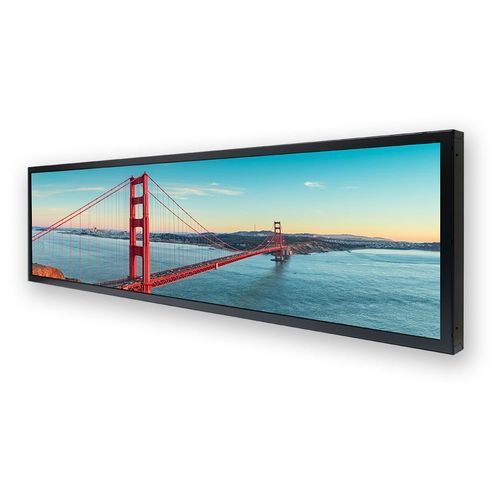

TFT-LCD monitor 3701-Y

LED backlightdigitalindustrial

Overview
The 37" 3701-Y is a 37-inch color TFT-LCD stretch (Spanpixel) display with an ultra-wide aspect ratio of 16:4.5 and native resolution 1920 x 540. It features a 3000 nits LED backlight designed for sunlight-readable digital signage and industrial installations, offering long backlight life and low power consumption. Typical deployment environments include public transportation, exhibition halls, retail stores, vending machines and POS systems.

Technical summary
37" TFT LCD; 3000 nits LED backlight; native resolution 1920 x 540; ultra-wide aspect ratio 16:4.5.

Main features

• Ultra-wide screen 16:4.5
• High brightness: 3000 nits (cd/m²)
• Sunlight readable
• Energy-efficient LED backlight
• Low power consumption
• LCD blackening defect free (Hi-Tni 110 °C)
• Backlight MTBF: 100,000 hours

Applications

• Digital signage (outdoor/indoor high-bright signage)
• Public transportation displays / passenger information systems
• Exhibition halls and retail store displays
• Vending machines and POS terminals
• Industrial HMI and embedded display solutions

Technical specifications

• Model Name: SSF3701-Y / SSH3701-Y / SSD3701-Y
• Description: 37" LCD, 3000 nits LED backlight, 1920 x 540 ultra-wide aspect ratio 16:4.5
• Size: 37"
• Display area (mm): 904.32 (H) x 254.34 (V)
• Brightness: 3000 cd/m²
• Resolution: 1920 x 540
• Aspect ratio: 16 : 4.5
• Contrast ratio: 5000 : 1
• Pixel pitch: 0.47 (H) x 0.47 (V) mm
• Pixel density: 54 PPI
• Viewing angle: 178° (H), 178° (V)
• Color saturation (NTSC): 86%
• Display colors: 16.7M
• Response time (Typical): 8 ms
• Panel interface: LVDS
• Input interface: DVI-I, HDMI, DP
• Input power: DC 24V
• Power consumption: 85.2 W / 91.2 W (model dependent)
• Dimensions (mm): 935.5 x 287.5 x 18.1 mm / 938.5 x 290.5 x 61.8 mm (model dependent)
• Bezel size (U/B/L/R): 16.6 / 16.6 / 15.6 / 15.6 mm / 18.1 / 18.1 / 17.1 / 17.1 mm (model dependent)
• Weight (Net): 4.4 kg / 8.7 kg (model dependent)
• Mounting: VESA 400 x 100 (variant dependent)
• OSD keys: 4 Keys (Power Switch, Menu, +, -)
• OSD control: Brightness, Color, Contrast, Auto Tuning, H/V Position, etc.
• Operating temperature: 0°C ~ 50°C
• Storage temperature: -20°C ~ 60°C
