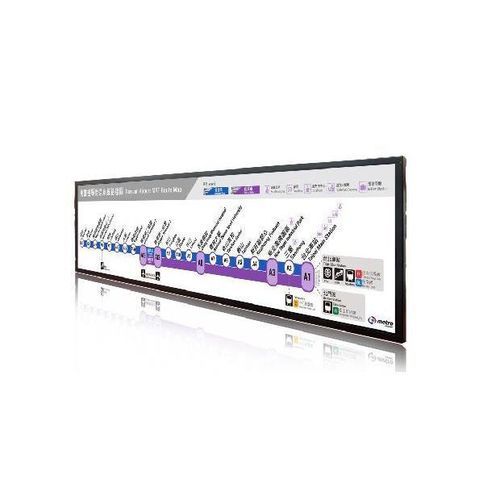

TFT-LCD monitor 6745-M series

LED backlightfor digital signage3840 x 1080

Introduction
The 6745-M is a 67.4-inch color TFT-LCD from Litemax’s Spanpixel series featuring an ultra-wide 16:4.5 aspect ratio and 3840 x 1080 resolution. Designed for 1000 cd/m² high-brightness performance with an energy-efficient LED backlight, it is intended for sunlight-readable applications such as digital signage, public transportation, exhibition halls, department stores and vending machines.

Main features

• Resizing LCD
• Ultra-wide screen (16 : 4.5)
• High brightness: 1000 nits
• Sunlight readable
• LED backlight (BL MTBF: 100,000 hours)
• Inputs: HDMI, DisplayPort

Available model names

• SSF6745-M
• SSH6745-M
• SSD6745-M

Specification
Model Name: SSF6745-M | SSH6745-M | SSD6745-M
Description: 67.4” Resizing LCD, 1000 nits LED backlight, 3840 x 1080
Size: 67.4”
Display area (mm): 1650.24 (H) x 464.13 (V)
Brightness: 1000 cd/m²
Resolution: 3840 x 1080
Aspect ratio: 16:4.5
Contrast ratio: 5500 : 1
Pixel pitch (mm): 0.42975 (H) x 0.42975 (V)
Pixel per inch (PPI): 59
Viewing angle: 178° (H), 178° (V)
Color saturation (NTSC): 84%
Display colors: 1.07G
Response time (Typical): 6.5 ms
Panel Interface: V-by-One
Input Interface: HDMI, DP
Input power: DC24V
Power consumption: 108W / 111W
Dimensions (mm): 1686 (W) x 497.9 (H) x 27.1 (D) ; 1691 (W) x 502.89 (H) x 71.10 (D)
Bezel size (U/B/L/R): 16.89 / 16.89 / 17.88 / 17.88 mm ; 19.38 / 19.38 / 20.38 / 20.38 mm
Weight (Net): 16.8 Kg ; 26 Kg
Mounting: 500 x 150 mm, 900 x 150 mm
OSD key: 5 Keys (Power Switch, Menu, +, -, Exit)
OSD control: Brightness, Color, Contrast, Auto Tuning, H/V Position, etc.
Operating temperature: 0 °C ~ 50 °C
Storage temperature: -20 °C ~ 60 °C

Technical specifications

• Panel size: 67.4”
• Resolution: 3840 x 1080 (ultra-wide)
• Aspect ratio: 16:4.5
• Brightness: 1000 cd/m² (sunlight readable)
• Backlight: LED (BL MTBF: 100,000 hours)
• Interface: V-by-One panel; HDMI and DisplayPort input
• Input power: DC24V
• Power consumption: typical 108W (variant up to 111W)
• Viewing angle: 178° horizontal / 178° vertical
• Response time: 6.5 ms (typical)
• Operating temperature range: 0 °C to 50 °C
• Storage temperature range: -20 °C to 60 °C
