TFT-LCD monitor 4305-Y series
LEDLED backlightfor digital signage

TFT-LCD monitor - 4305-Y series - Litemax Electronics Inc. - LED / LED backlight / for digital signage
TFT-LCD monitor - 4305-Y series - Litemax Electronics Inc. - LED / LED backlight / for digital signage
TFT-LCD monitor - 4305-Y series - Litemax Electronics Inc. - LED / LED backlight / for digital signage - image - 2
Add to favorites
Compare this product
Go to the Litemax Electronics Inc. website for more information

Characteristics

Technology
TFT-LCD, LED, LED backlight
Applications
for digital signage
Display size
43"
Resolution
3840 x 720
Mounting
VESA mounting
Other characteristics
HDMI, high-brightness, DisplayPort, wide, sunlight-readable, stretched
Length

Min.: 1,112.3 mm
(43.791 in)

Max.: 1,114.9 mm
(43.894 in)

Width

Min.: 228.5 mm
(8.9961 in)

Max.: 231.1 mm
(9.0984 in)

Height

Min.: 27.8 mm
(1.0945 in)

Max.: 70.8 mm
(2.7874 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 60 °C
(140 °F)

Description

Introduction

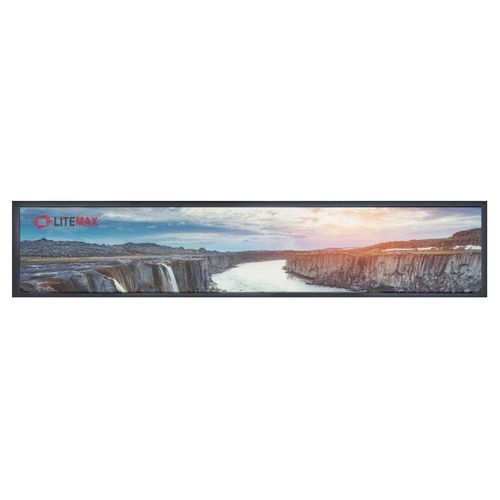

The 4305-Y is a 43 in TFT-LCD display in Litemax Spanpixel series, featuring an ultra-wide 16:3 aspect ratio and 3840 x 720 resolution. It delivers 1000 cd/m² brightness with an energy-efficient LED backlight and is designed for sunlight-readable signage applications such as digital signage, public transportation, exhibition halls, department stores and vending machines.

Main features
  • Ultra wide screen 16:3
  • Brightness 1000 cd/m² (sunlight readable)
  • LED backlight
  • Low power consumption
  • LCD blackening defect free (Hi-Tni 110 °C)
  • Backlight MTBF: 50,000 hours
  • Panel interface: V-by-One
  • Input interfaces: HDMI, DisplayPort (DP)

Specification table
Model Name: SSF4305-Y / SSH4305-Y / SSD4305-Y
Description: 43 in TFT-LCD, 1000 cd/m² LED backlight, 3840 x 720
Size: 43 in
Display area (mm): 1073.78 (H) x 201.33 (V)
Brightness: 1000 cd/m²
Resolution: 3840 x 720
Aspect ratio: 16 : 3
Contrast ratio: 2700 : 1
Pixel pitch (mm): 0.2796 (H) x 0.2796 (V)
Pixel per inch (PPI): 91
Viewing angle: 178° (H), 178° (V)
Color saturation (NTSC): 83%
Display colors: 1.07G
Response time (Typical): 12 ms
Panel interface: V-by-One
Input interface: HDMI, DP
Input power: DC 24V
Power consumption: 56W / 59W
Dimensions (mm): 1112.3 x 228.5 x 27.8 ; 1114.9 x 231.1 x 70.8
Bezel size (U/B/L/R): 13.585/13.585/19.26/19.26 mm ; 14.89/14.88/20.56/20.56 mm
Weight (Net): 1.53 kg ; 8.9 kg
Mounting: (variant) — ; 300x75
OSD key: 5 Keys (Power Switch, Menu, +, -, Exit)
OSD control: Brightness, Color, Contrast, Auto Tuning, H/V Position, etc.
Operating temperature: -20 °C ~ 60 °C
Storage temperature: -20 °C ~ 60 °C

Technical characteristics
  • Model: SSF4305-Y / SSH4305-Y / SSD4305-Y
  • Display: 43 in TFT-LCD, 3840 x 720, aspect ratio 16:3
  • Brightness: 1000 cd/m² (sunlight readable)
  • Panel interface: V-by-One
  • Input interfaces: HDMI, DisplayPort (DP)
  • Power: DC 24V — consumption 56W / 59W
  • Dimensions (variants): 1112.3 x 228.5 x 27.8 mm ; 1114.9 x 231.1 x 70.8 mm
  • Weight (variants): 1.53 kg ; 8.9 kg
  • Operating temperature range: -20 °C to 60 °C
