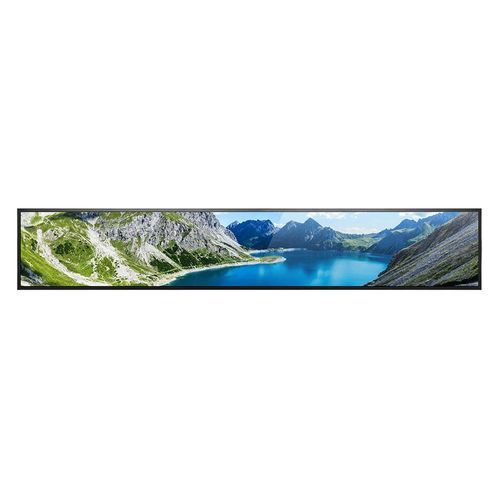

TFT-LCD monitor 8604-M series

LED backlightfor digital signagefor vehicles

Product overview The 8604-M is an 86-inch ultra-wide (16:2.5) TFT-LCD display with a resolution of 3840 × 600 and a high-brightness 700 cd/m² LED backlight. Part of the Spanpixel series, it is engineered for sunlight-readable applications and power-efficient operation. Typical uses include digital signage, public transportation displays, exhibition halls, department stores and vending machines.

Main features

• Resizing/stretch TFT-LCD panel
• Ultra-wide aspect ratio 16:2.5
• Brightness: 700 cd/m² (sunlight readable)
• LED backlight with MTBF 30,000 hours
• Inputs: HDMI, DisplayPort
• Panel interface: V-by-One

Applications / Highlights

• Digital signage and creative/stretch displays
• Transportation information displays
• Low power consumption design via efficient LED backlight

Specification table (summary) Model Name: SSF8604-M / SSH8604-M / SSD8604-M
Description: 86” resizing TFT-LCD, 700 nits LED backlight, 3840×600, ultra-wide screen
Size: 86”
Display area (mm): 2158.85 (W) x 337.32 (H)
Brightness: 700 cd/m²
Resolution: 3840 × 600
Aspect ratio: 16:2.5
Contrast ratio: 1200:1
Pixel pitch (mm): 0.5622 (H) x 0.5622 (V)
Pixel density (PPI): 45
Viewing angle: 178° (H), 178° (V)
Color saturation (NTSC): 82%
Display colors: 1.07G
Response time (typical): 8 ms
Panel interface: V-by-One
Input interface: HDMI, DP
Input power: AC 100–240 V
Power consumption: 148 W / 151 W (variants)
Dimensions (mm): 2188.50 (W) x 372.20 (H) x 43.80 (D) ; 2192.90 (W) x 376.20 (H) x 93.60 (D) (variant)
Bezel size (U/B/L/R): 17.94 / 16.94 / 14.83 / 14.83 mm ; 19.94 / 18.94 / 17.025 / 17.025 mm (variant)
Weight (Net): 22 kg ; 29.6 kg (variant)
Mounting: 500 x 150 mm, 900 x 150 mm (variant)
OSD key: 5 keys (Power, Menu, +, -, Exit)
OSD control: Brightness, Color, Contrast, Auto Tuning, H/V Position, etc.
Operating temperature: 0 °C to 50 °C
Storage temperature: -20 °C to 60 °C

Technical specifications

• Model variants: SSF8604-M, SSH8604-M, SSD8604-M
• Panel size: 86" stretch/resizing TFT-LCD
• Resolution: 3840 × 600 (ultra-wide)
• Brightness: 700 cd/m² (sunlight readable)
• Backlight: LED, BL MTBF 30,000 hours
• Interface: V-by-One; HDMI and DisplayPort inputs
• Power: AC 100–240 V input; typical consumption 148 W / 151 W depending on variant
• Mechanical: dimensions and bezel sizes vary by variant; mounting options 500×150 mm and 900×150 mm
• Environmental: Operating 0 °C to 50 °C; Storage -20 °C to 60 °C
• Other: 178° viewing angles, 1200:1 contrast, 45 PPI, 1.07G colors, 8 ms response time
