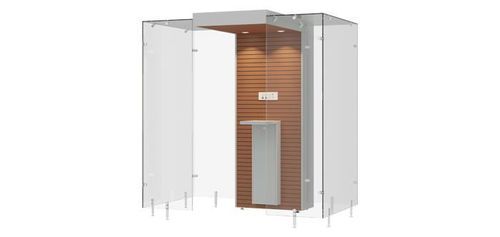

HEPA filter smoking booth SP160

tempered glassMDFsteel

Product overview
A modular indoor smoking cabin with a high-performance air filtration system. The SP160 is designed to contain and filter smoke and odour within the cabin while providing a comfortable, ventilated space. Its modular construction allows adaptation to different installation layouts and capacities.

Key features

• Tested and certified for safety and air filtration performance.
• Modular and customizable configurations.
• Effective filtration maintained by routine filter replacement and service.
• Designed for long-term operational reliability.

Recommended areas of application

• Indoor public and staff areas requiring separation of smoking and non-smoking zones.
• Hospitality, corporate facilities, transport hubs and social spaces where smoke and odour control is needed.
• Expandable installations by adding additional modules for larger user groups.
• Base footprint from 1.2 m²; units are typically installed adjacent to walls.

Benefits

• Removes smoke and improves local air quality.
• Reduces time and disruption for smoking breaks by providing a dedicated space.
• Energy-efficient operation with sensor-driven controls.
• Enhances comfort for customers and staff and integrates with modern interiors.
• Freestanding and movable to accommodate changing site requirements.

Technology / How it works

• Air is drawn through a multi-stage filtration system capturing particulate matter and adsorbing gases before release.
• Filters retain hazardous components; cleaned air is returned to the environment.
• Scheduled maintenance and filter replacement are required to sustain performance.
• Built-in aluminium ashtray allows safe disposal of ash and cigarette ends.

Door types / Entrance options

• Open
• Semi-open
• Soft-close sliding door
• Automatic door
• Manual

Features

• Adjustability: Variable airflow speeds for standby and operating modes.
• Power saving: Entry sensors adjust lighting and ventilation to reduce consumption.
• Modular construction: Easy to reduce or expand cabin size; freestanding and movable.
• Customization options: Integrated LED screen, multiple ashtray sizes, custom finishes and colours.

Technical specifications

• Model: SP160 Indoor Smoking Cabin
• Dimensions (L × D × H) – Weight incl. filters: 2000 × 1600 × 2200 mm – ≅ 505 kg
• Main housing material: Frame: Steel SPCC 1.5 mm; Front panels: Medium Density Fiberboard (MDF)
• Main housing colours: Frame: Powder-coated steel RAL 9005 (Black) or RAL 9006 (Grey); wooden panels: Mahogany or Maple; other colours optional.
• Glass: 8 mm tempered glass
• Recommended simultaneous users: 3–6 people (depending on occupancy and layout)
• Adjustability details: Variable airflow speeds for standby and operating modes
• Power saving details: Entry sensors adjust lighting and ventilation to reduce consumption
• Entrance options: Open, Semi-open, Soft-close sliding door, Automatic door, Manual
• Customization (optional): LED screen, various ashtray sizes, custom colours
