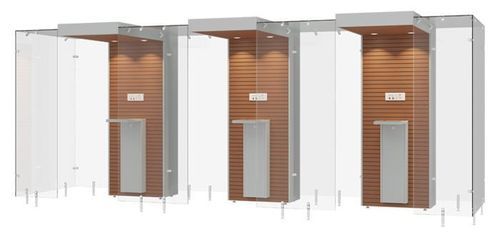

HEPA filter smoking booth 3SP160

tempered glassMDFsteel

Overview
A modular indoor smoking cabin equipped with a multi-stage air filtration system that contains smoke and reduces odors within the unit. The 3SP160 is designed for easy installation, modular expansion and reliable air-cleaning performance in public and commercial spaces.

Key Features

• Tested and certified safety and performance.
• Modular and customizable configurations.
• Multi-stage filtration with scheduled maintenance for sustained efficiency.
• Long-term operational performance.
• Variable airflow speeds for standby and operating modes.
• Sensor-activated lighting and ventilation to reduce energy consumption.
• Freestanding, movable modules for flexible layout and resizing.

Recommended Areas of Application

• Workplaces, hotels, airports and other public buildings.
• Designed for wall-adjacent placement; base footprint from 3.6 m², expandable by adding modules.
• Suitable where smokers and non-smokers share space, providing a smoke-controlled, comfortable environment.

Benefits

• Removes smoke and improves air quality within shared spaces.
• Convenient placement shortens smoking breaks and lowers operational downtime.
• Energy-efficient operation via sensors and variable-speed control.
• Enhances comfort for guests, visitors and staff while maintaining a modern appearance.
• Easy to clean and adapt due to movable modules and accessible components.

Technology / How it works
The filtration system captures gases and particles before smoke exits the cabin. Air passes through sequential filter stages that retain pollutants and fine particles; regular filter maintenance is required to maintain efficiency. The cabin includes an internal aluminum ashtray for safe disposal of ash and cigarette ends.

Entrance Options

• Open
• Semi-Open
• Soft Close Sliding Door
• Automatic Door

Technical specifications

• Model: 3SP160 Indoor Smoking Cabin
• Dimensions (L x D x H) – Weight incl. filters: 5400 x 1600 x 2200 mm – ≅ 970 kg
• Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
• Main housing colors: Frame housing powder coated steel RAL 9005 (Black) or RAL 9006 (Grey); wooden panel: Mahogany or Maple; other colours optional
• Glass: 8 mm tempered glass
• Simultaneous users: 10–12 people (recommended number based on typical adult occupancy; actual comfort may vary)
• Features: adjustability (variable airflow speeds for standby and operating modes); power saving via sensor activation; modular construction (easy to reduce or expand cabin size; freestanding and movable)
• Entrance options: Open, Semi-Open, Soft Close Sliding Door, Automatic Door
• Customization (optional): LED screen, various sizes of integrated ashtrays, customised colours
