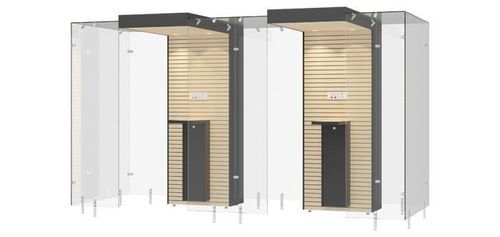

HEPA filter smoking booth 2SP160

tempered glassMDFsteel

Overview
A modular indoor smoking cabin with a high-quality air filtration system. The 2SP160 is designed to confine smoke and odors within the cabin while restoring clean, breathable air to the surrounding environment. The unit is delivered as a modular, freestanding solution suitable for offices, public buildings and controlled indoor areas.

Key Features

• Tested and certified for quality and safety.
• Customizable configurations and finishes.
• Effective filtration maintained by scheduled service to ensure long-lasting air-cleaning performance.
• Designed for stable lifetime operation with replaceable filter elements.

Recommended Areas of Application

• Allows smokers and non-smokers to share adjacent spaces by containing smoke inside the cabin.
• Accommodates up to eight simultaneous smokers; capacity and area can be expanded using additional modules. Base footprint starts at 2.4 m2. SP Series units are commonly installed against walls.

Benefits

• Removes smoke and particulates from cabin air, improving local air quality.
• Reduces time spent on smoking breaks by providing an on-site, convenient solution.
• Energy-efficient operation reduces operating costs while maintaining user comfort.

Technology / How it works
Smoke and gases are captured before leaving the cabin and drawn through multi-stage filters. The system removes fine particles and harmful gases, retaining pollutants in the filter stack and returning cleaned air to the room. Regular maintenance and filter replacement keep performance consistent. Ash and cigarette butts are disposed of in the internal aluminium ashtray.

Entrance Options

• Open
• Semi-Open
• Soft Close Sliding Door
• Automatic Door

Technical specifications

• Model: 2SP160 Indoor Smoking Cabin
• Dimensions (L x D x H) – Weight incl. filters: 3700 x 1600 x 2200 mm – ≅ 760 kg
• Main housing material: Frame housing: Steel SPCC 1.5 mm; Front: Medium Density Fiberboard (MDF)
• Main housing colors: Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey). Wooden Panel: Mahogany or Maple. Other colours optional.
• Glass: 8 mm tempered glass
• Simultaneous users (recommended): 6–10 people
• Features: Variable airflow speeds for standby and operating modes; sensor activation on entry reduces power consumption by adjusting lighting and ventilation speed; modular construction — easy to reduce or expand cabin size; freestanding and movable.
• Customization (optional): LED screen, various sizes of integrated ashtrays, customised colours.
